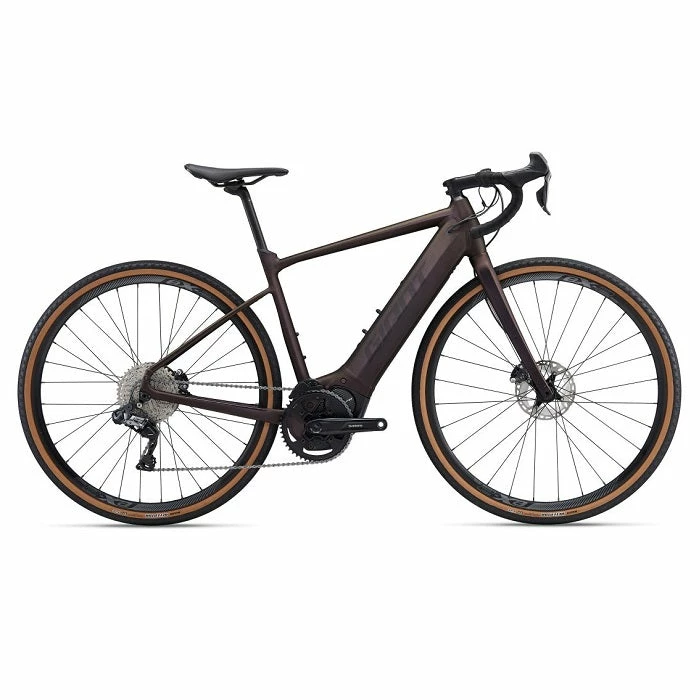

GIANT LIV GIANT Revolt E+ Pro XR

ASK US FOR THE BEST POSSIBLE DEALS ON GIANT/LIV BIKES. FOR MORE GIANT/LIV MODELS NOT AVAILABLE ON OUR WEBSITE, PLEASE CONTACT US TO CHECK SUPPLIER AVAILABILITY.

Motor
Shimano EP8, 85Nm, up to 400% asssistance

Controller
RideControl GO top tube mounted, Assistance level can also be controlled by left hand STI buttons

Display
ANT+ Wireless display compatible, not included

Battery
EnergyPak Compact 500Wh EnergyPak Plus range extender compatible

Charger
EnergyPak 4A smart charger compact

Frame
ALUXX SL Aluminium

Fork
Advanced-Grade Composite, full-composite OverDrive steerer

Handlebar
Giant Contact XR D-Fuse, 31.8mm, 5° back sweep, flared drop

Grips
Giant Connect tape

Stem
Giant Contact

Seatpost
Giant D-Fuse SL, composite

Saddle
Giant Approach

Shifters
Shimano GRX Di2 ST-RX815 1×11 speed

Rear Derailleur
Shimano GRX Di2 RX817 (max 42T cassette size)

Brakes
Shimano BR-RX810, hydraulic disc, 160mm

Brake Levers
Shimano ST-RX815 hydraulic disc

Cassette
Shimano CS-M5100-11, 11-42, 11-speed

Chain
KMC e.11 Turbo, EcoProteq

Crankset
Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring

Bottom Bracket
Integrated into motor

Rims
Giant eX 2, Tubeless Ready, 700c Aluminium

Hubs
Giant Performance Tracker Road, Sealed Bearing, 12mm thru axle

Spokes
Sapim E-Lite [r] Race [f]

Tyres
Maxxis Receptor, EXO, Skinwall, 700x40mm, Tubeless

Extras
Factory tubeless set up including sealant

Fender/Chainguard
Compatible with RGX 45 fender (sold separately) // needs *RGX Seat Tube Strap Mounting Kit* (part 540000042)

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
