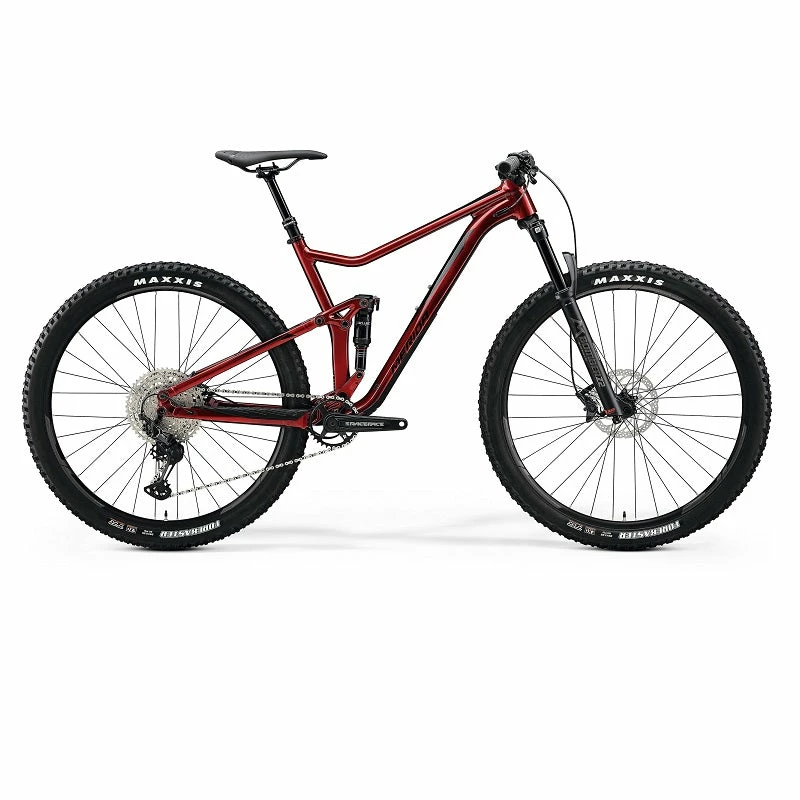

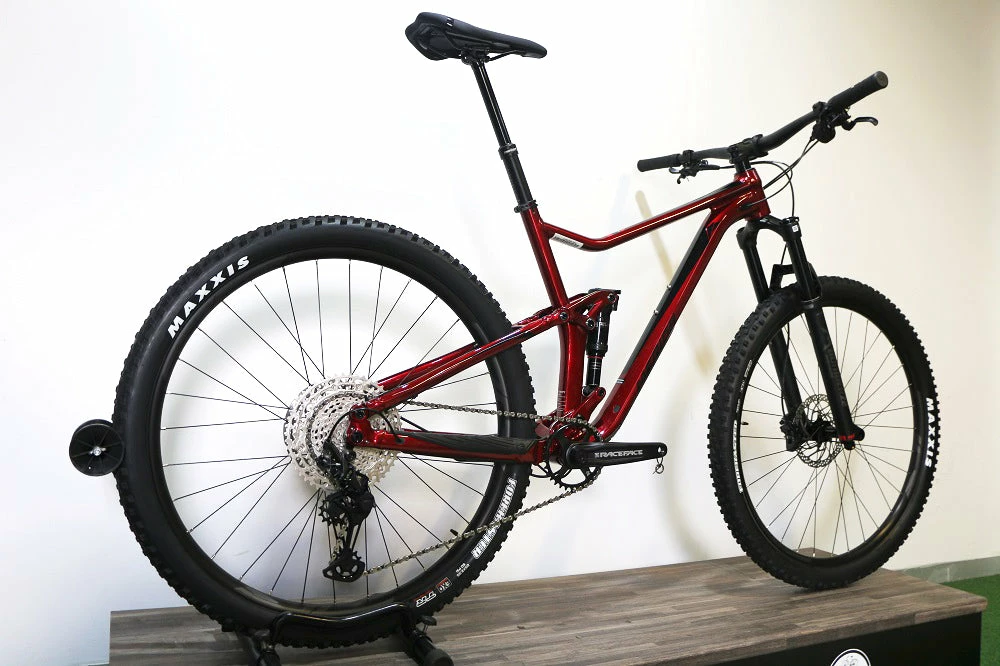

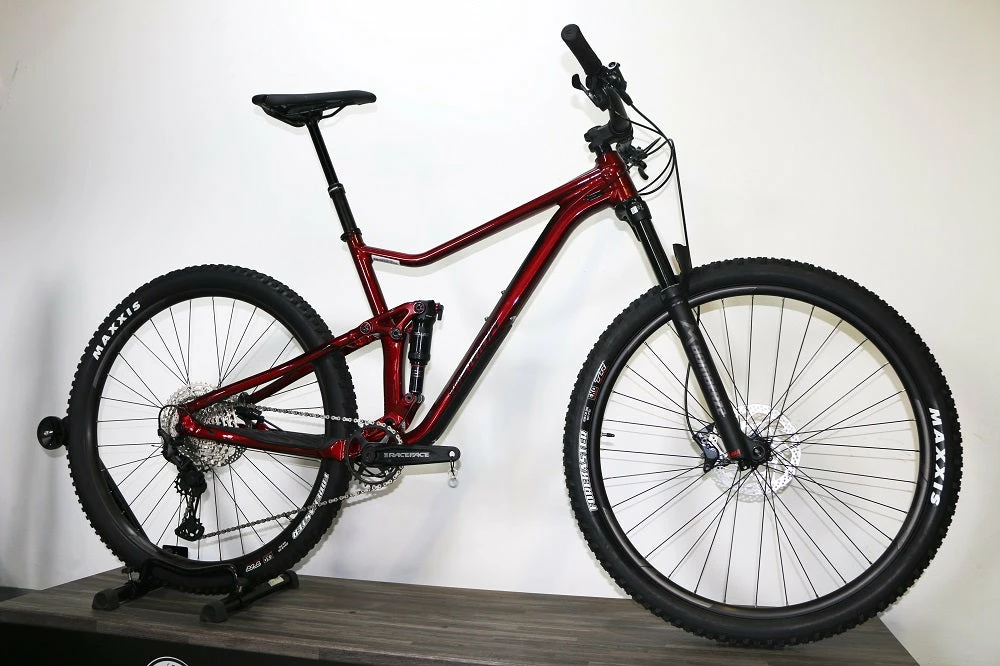

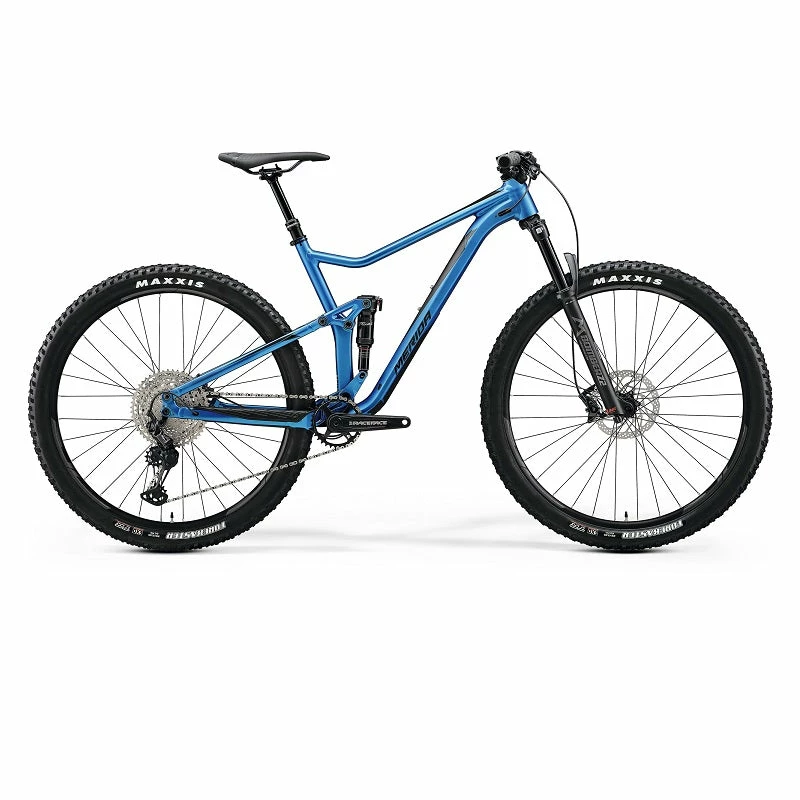

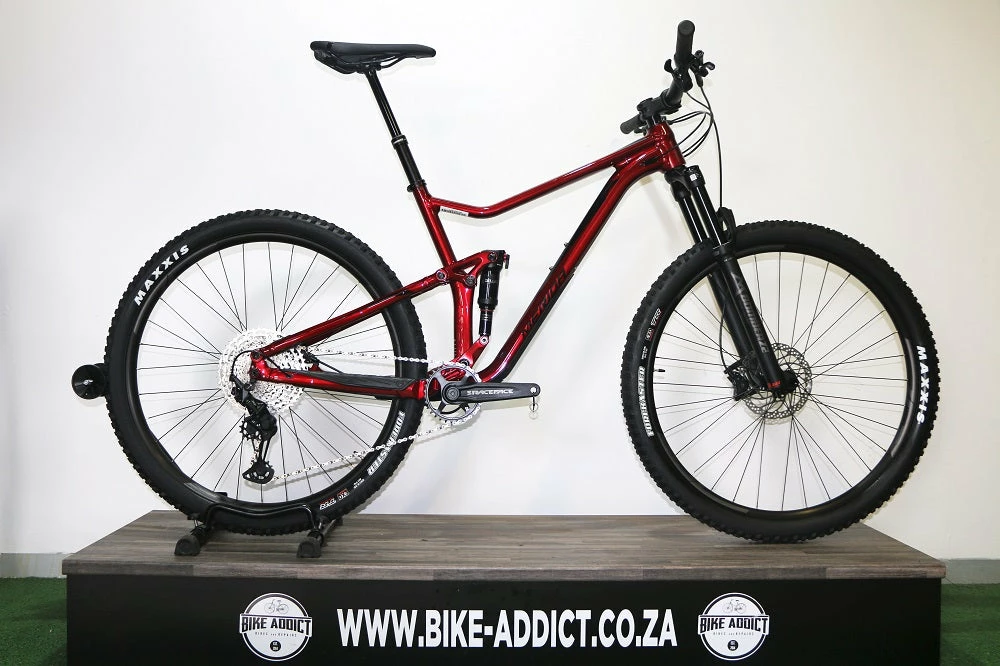

MERIDA One Twenty 600 (2022)

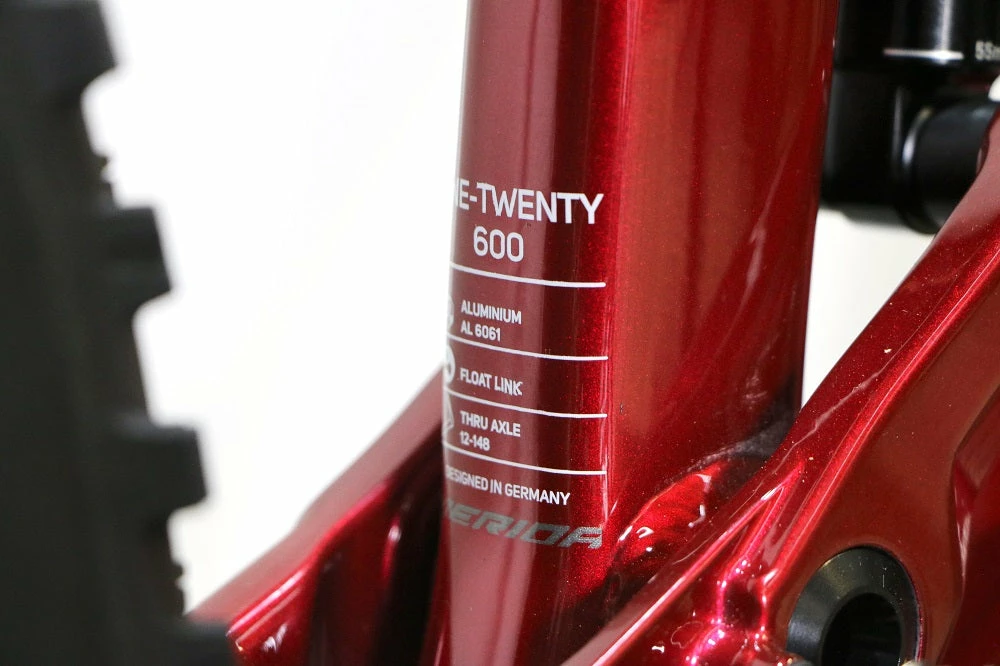

FRAME ONE-TWENTY LITE
120mm suspension travel
material: aluminium
29 wheelsize
148x12mm axle standard
BB92 bottom bracket standard

COLOR SILK BLUE (BLACK) / DARK STRAWBERRY (BLACK)

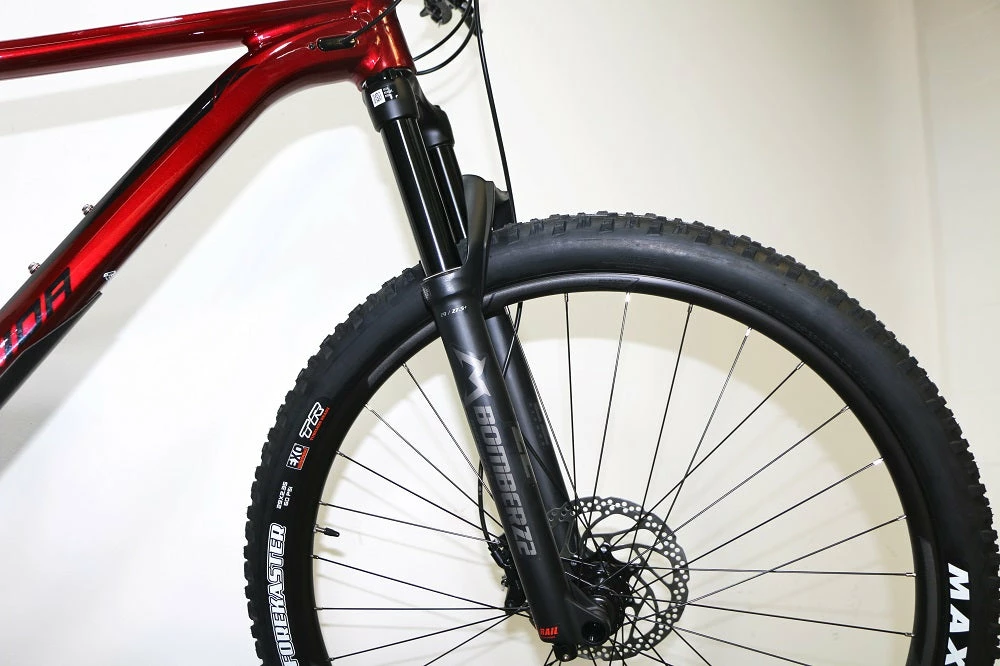

FORK Marzocchi Z2
Air
130mm suspension travel
Tapered
44mm fork offset
29×2.6″ max. wheelsize

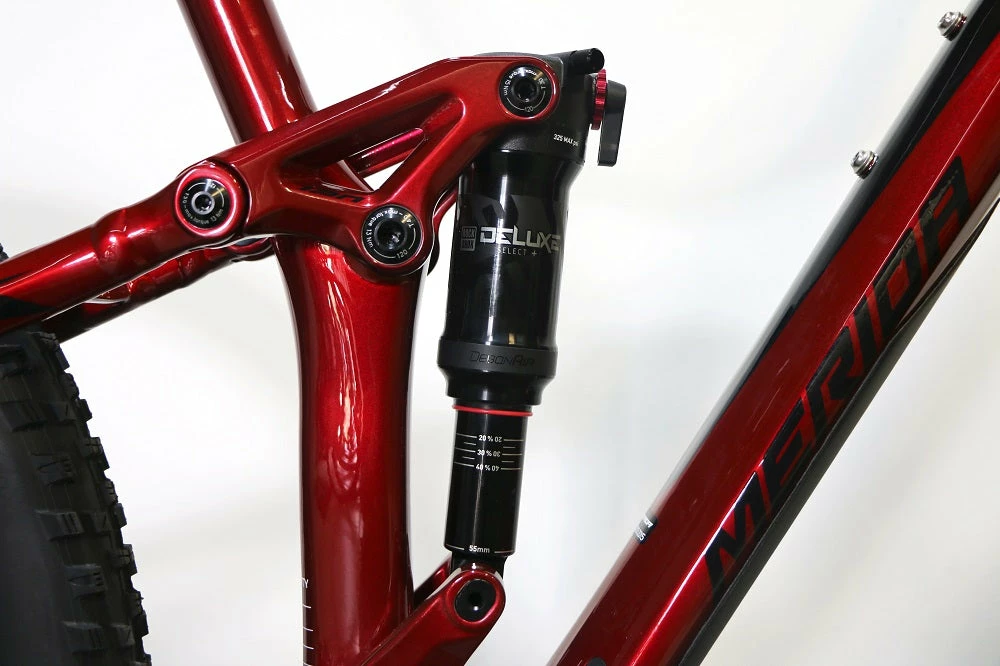

SHOCK Rock Shox Deluxe Select+
lockout

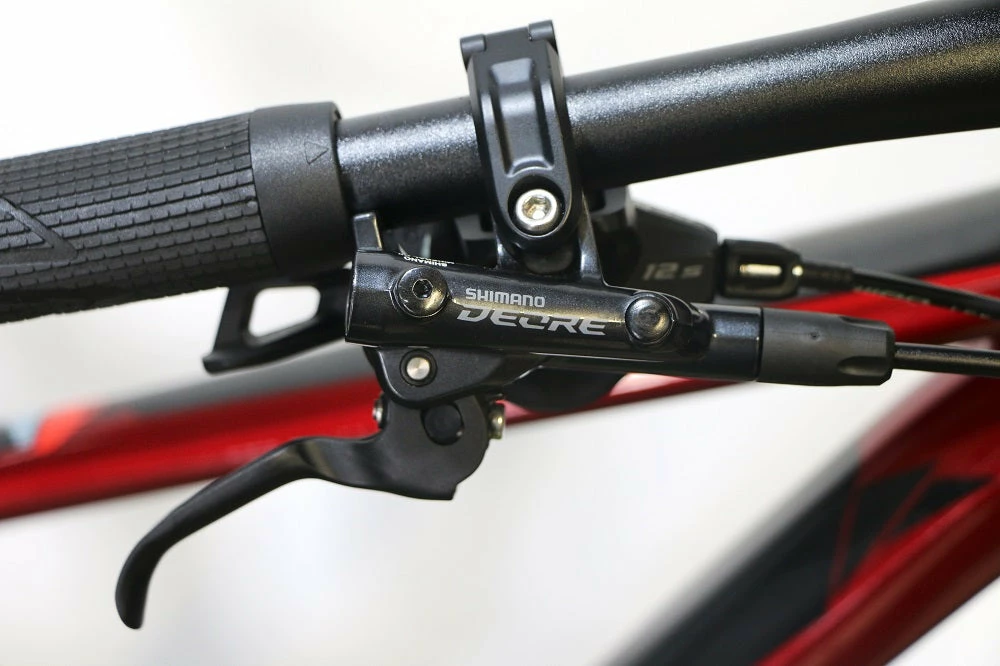

BRAKES Shimano M6100

ROTORS Shimano RT30

HEADSET FSA NO.47/50

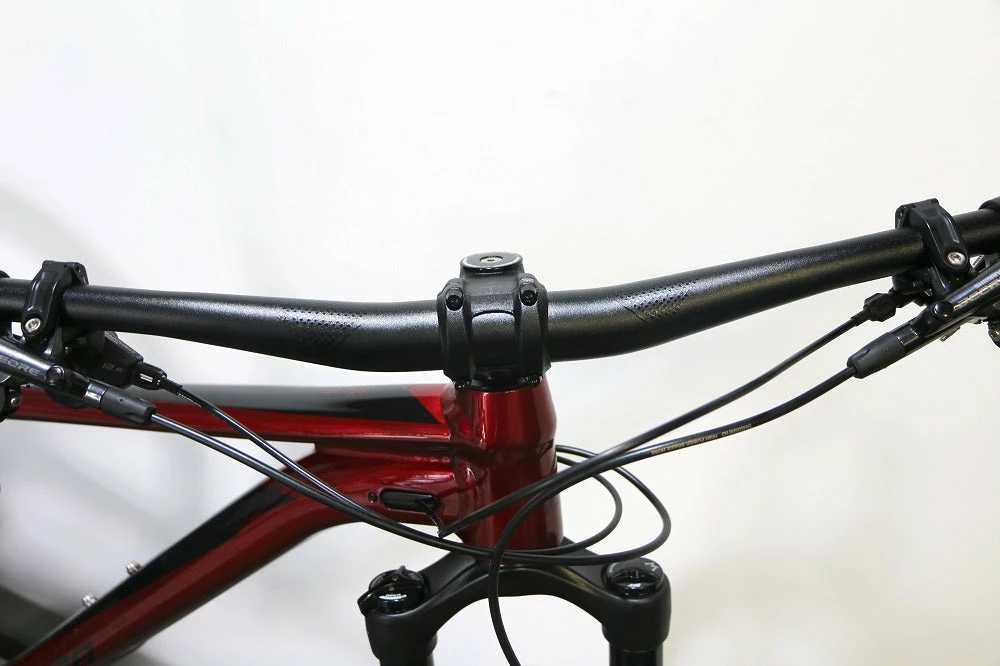

HANDLEBAR MERIDA EXPERT TR

HANDLEBAR STEM MERIDA EXPERT TR

GRIP MERIDA COMP EC

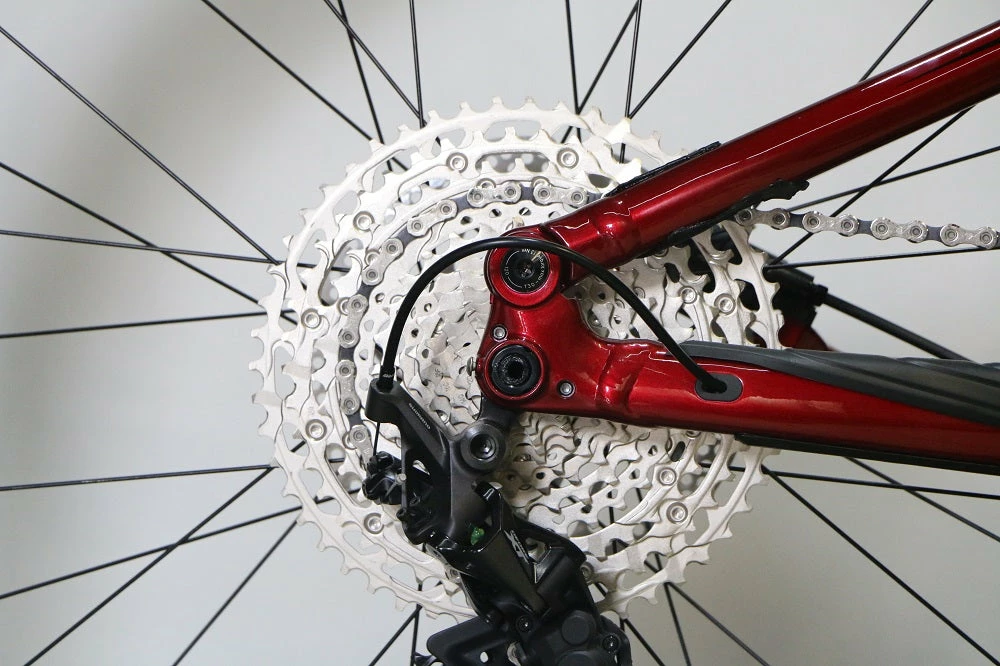

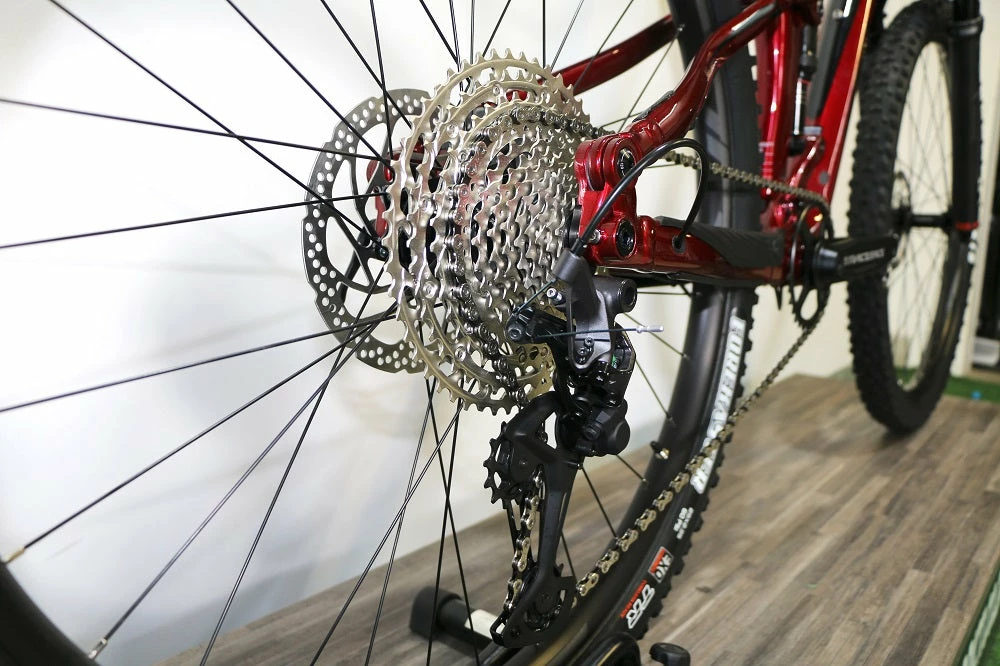

DERAILLEUR (R) Shimano XT M8100 Shadow+

SHIFTERS Shimano SL -MT500-IL / Shimano Deore M6100

SEAT POST MERIDA COMP TR

SEAT CLAMP MERIDA EXPERT

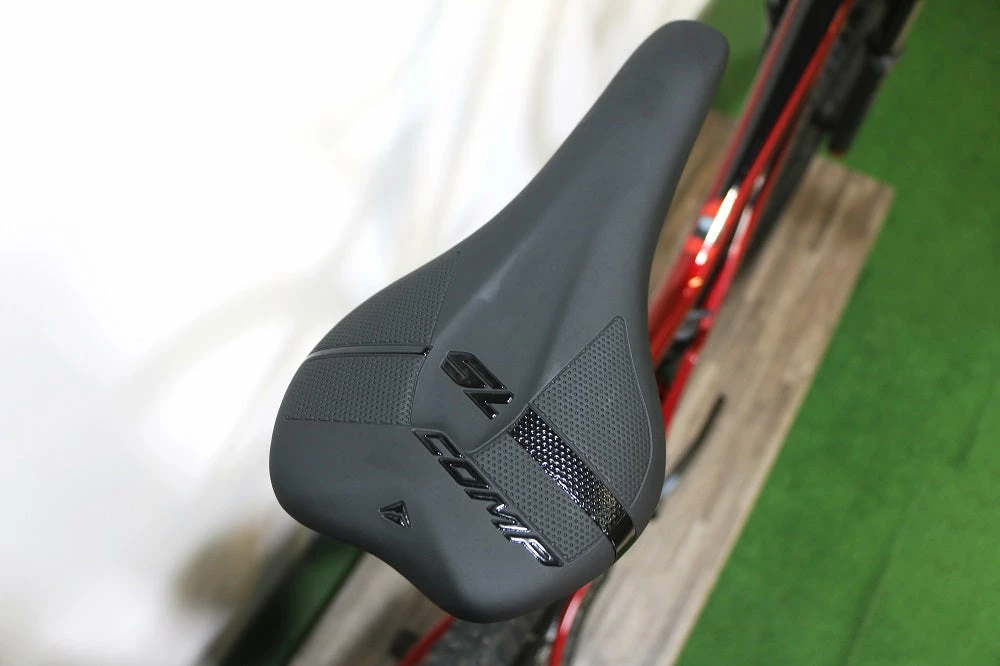

SADDLE MERIDA COMP SL

CHAIN KMC X12

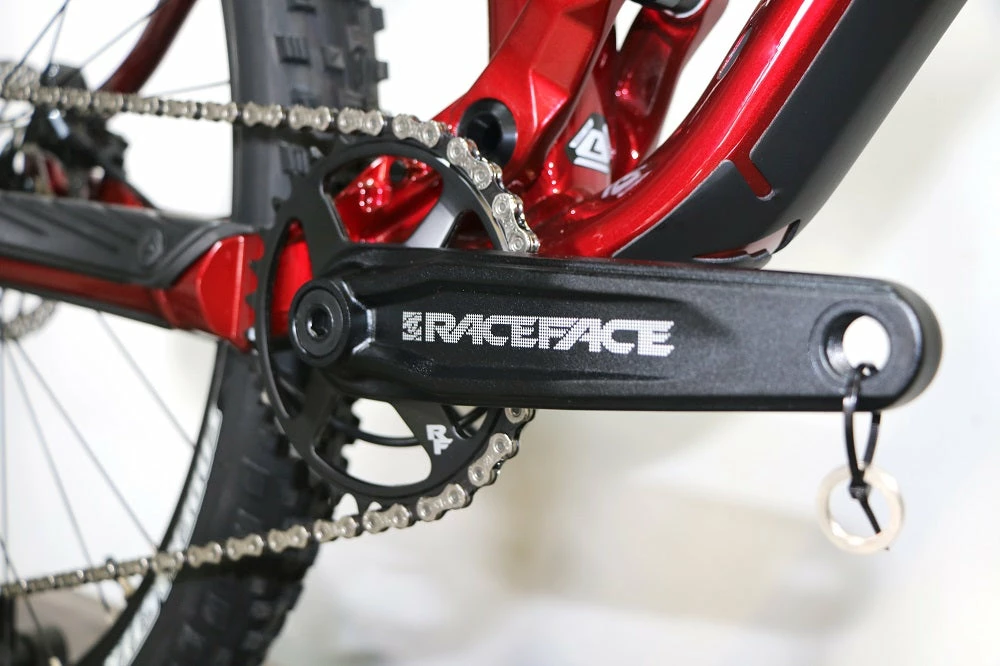

CRANK Race Face Ride
32 teeth
170 mm-S, 175 mm-M up

FREEWHEEL Shimano Deore M6100
10-51 teeth
12 speed

BOTTOM BRACKET Race Face BB BB92– Ø24mm

HUBS Shimano MT400-B / Shimano MT410-B

RIM MERIDA EXPERT TR
29mm inner width
material: aluminium
Tubeless ready (tubeless tape and valves not included)

TYRE FRONT Maxxis Forekaster
29×2.35″
fold
TR EXO Dual

TYRE REAR Maxxis Forekaster
29×2.35″
fold
TR EXO Dual

AXLES MERIDA EXPERT TR

SPOKES Double Butted Black stainless

MAX. WEIGHT 135 kg
