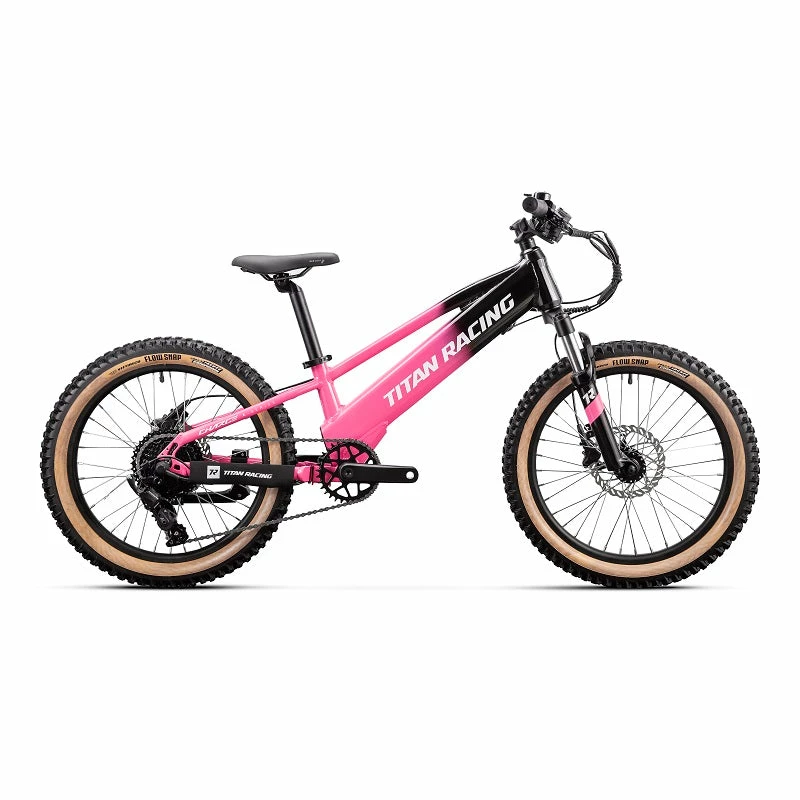

TITAN Charge Calypso Jr. 20″ (2023)

FRAME
CHARGE JR E-MTB ALLOY FRAME
JR GEOMETRY / MACHINE FORMED TUBING / INTERNAL BATTERY / INTERNAL CABLE ROUTING / QR 9mm REAR AXLE / DISC ONLY

SIZE
20″x9.5″

FORK
TRC 212 50mm
20″ / 50mm / COIL SPRING / ADJUSTABLE / HYDRAULIC LOCKOUT

CHAINWHEEL
PROWHEEL 32T ALLOY
PROWHEEL A10B W/O CHAINGUARD 32T 127MM Alloy

DERAILLEUR REAR
MICROSHIFT ACOLYTE RD-M5185M

SHIFTER RIGHT
MICROSHIFT SL-M7180-R

CHAIN
KMC Z7

FREEWHEEL
MICROSHIFT CS-H083 12-46T

BB SET
FP-B602

SPEED
1 X 8 SPEED

BATTERY
36V,7.8AH LG BATTERY CELL, 2600MAH

CONTROLLER
36V/250W

DISPLAY
S866,LCD,36V

SENSOR
DOUBLE HALL, KT-V12, 12 MAGNET

CHARGER
MDA257,36/48V/2A, SOUTH AFRICA STANDARD, 3 LEGS TYPE

MOTOR
XIONDA 36H ALLOY 250W 25KM/H

BRAKE LEVER
YX X-SPARK 3 FINGER

BRAKE FRONT
YX X-SPARK HD-E520 2 PISTON

BRAKE REAR
YX X-SPARK HD-E520 2 PISTON

BRAKE CABLE
BLACK

RIMS
TR JR 20″ RIM 32H
20″ ALLOY BLACK // DOUBLE WALL / EYELETS/ A/V / 14Gx32H (XD35)

HUB FRONT
ALLOY QR
KT-K68F DISC QR TYPE M9*13G*36H*100*108

HUB REAR
XIONDA
XIONDA 36H ALLOY

SPOKES
STEEL

TUBE
A/V

TYRES
VEE RUBBER FLOW SNAP 20″ X 2.4
TRAIL – XC / TC COMPOUND / 72TPI / NATURAL WALL / WIRE BEAD

GRIP
TR JUNIOR GRIP

HANDLEBAR
TR COMP RISER 560mm
TR RISER 31.8 OVERSIZED 560MM

HANDLEBAR STEM
TR JUNIOR OS 45MM
TR-SM-M015 45MM

HEADSET
FP H807

SPACER
2 X 100MM

SADDLE
SR 7038J

SEAT POST
TR JUNIOR 27.2mm 250mm
TR SP-102 27.2mm 250mm

SEAT CLAMP
TR AR-101 SQR115

KICKSTAND
TR QK-RA08 SIDE KICK STAND FOR E-BIKE
