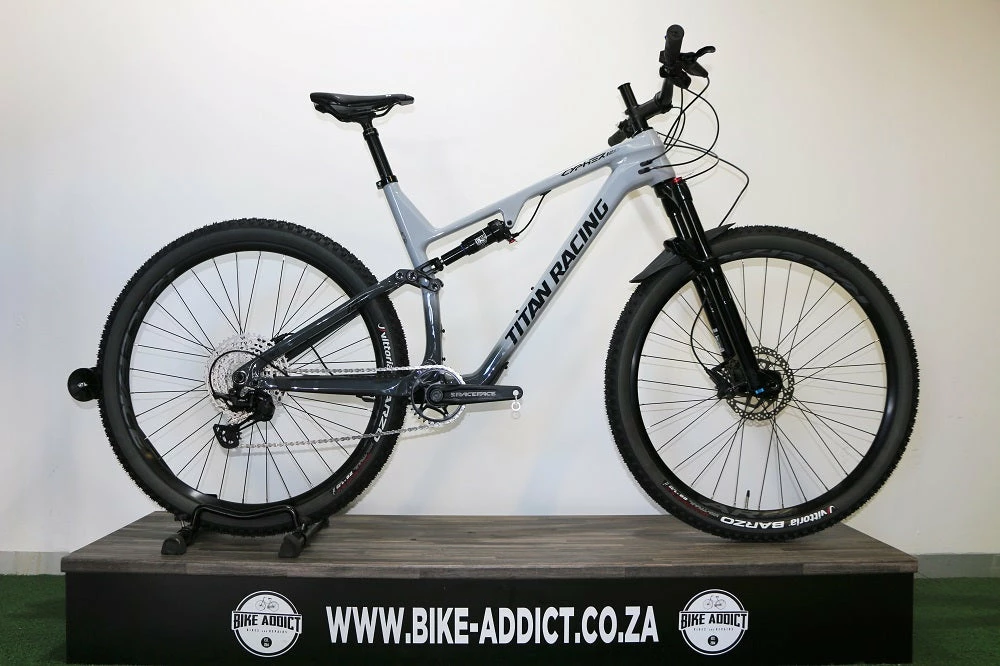

TITAN Cypher 120 Carbon Expert (2023)

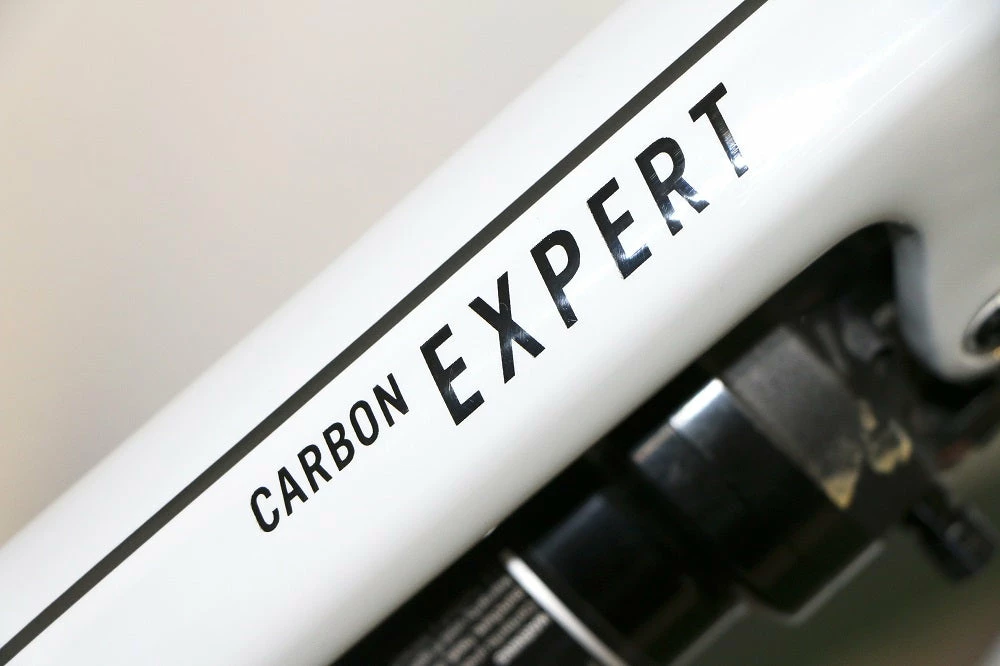

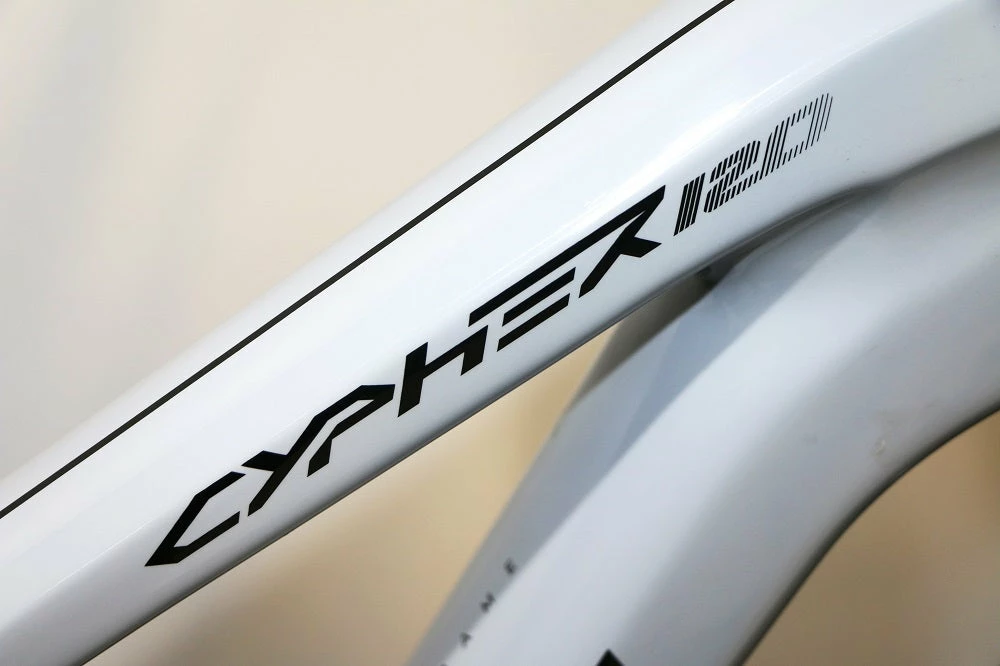

FRAME
CYPHER CARBON FRAMESET

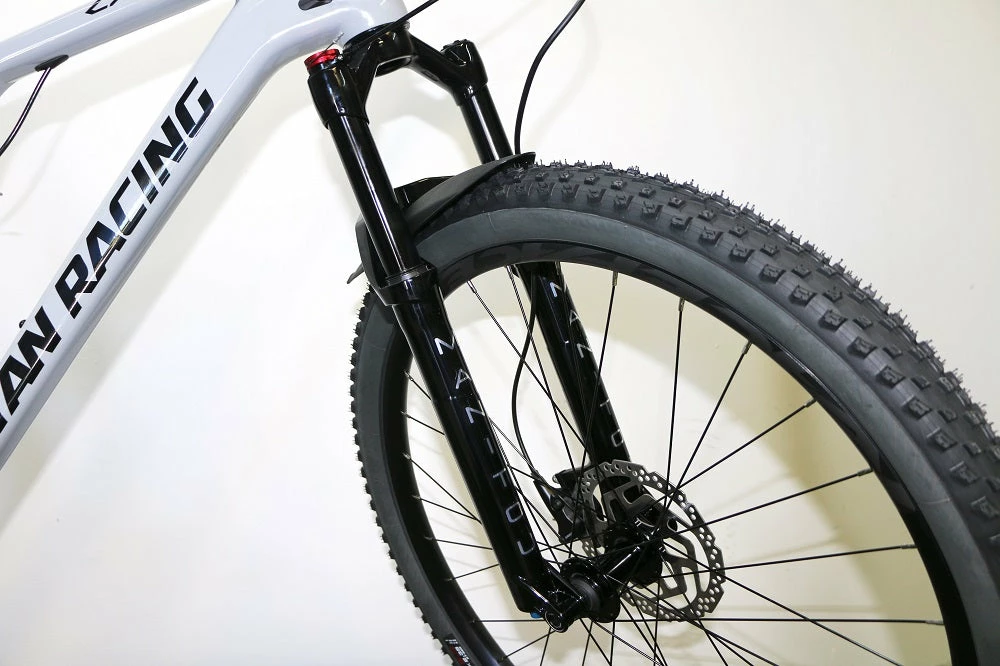

FORK
MANITOU R7 EXPERT 120MM
29″ / 120mm / EXPERT AIR SPRING / 32mm STANCHIONS / VTT DAMPING / 3-POSITION COMPRESSION OPEN,TRAIL,LOCK / 15 X 110mm THRU AXLE BOOST / 44mm OFFSET

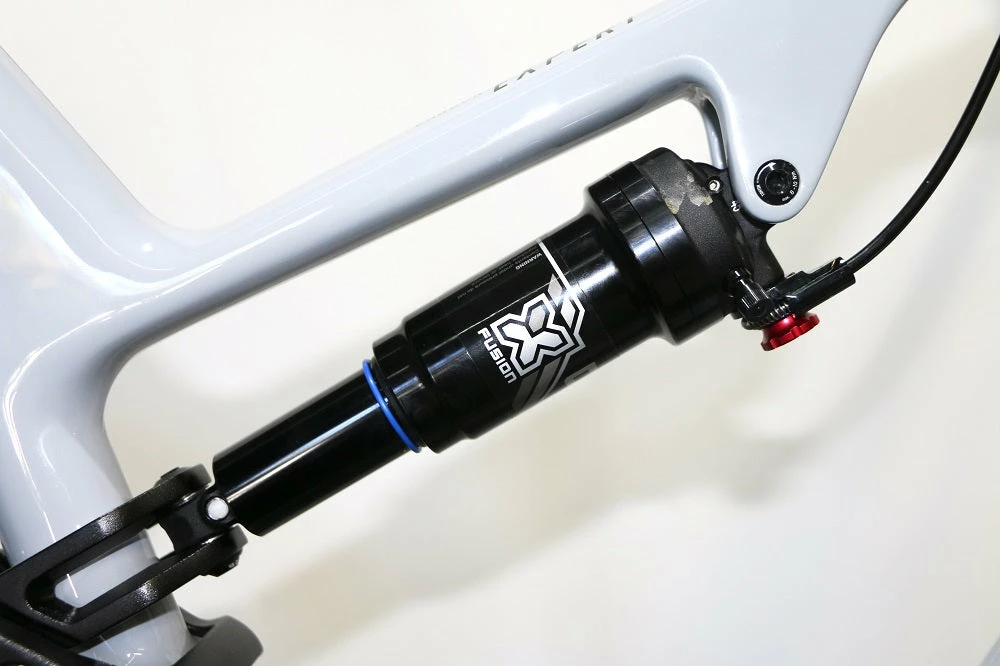

REAR SHOCK
X-FUSION O2 RLR WITH QUICK FLIP REMOTE
XC-TRAIL / AIR SPRING / REBOUND AND LOCKOUT ADJUSTMENT / METRIC / 190 X 45 D TUNE

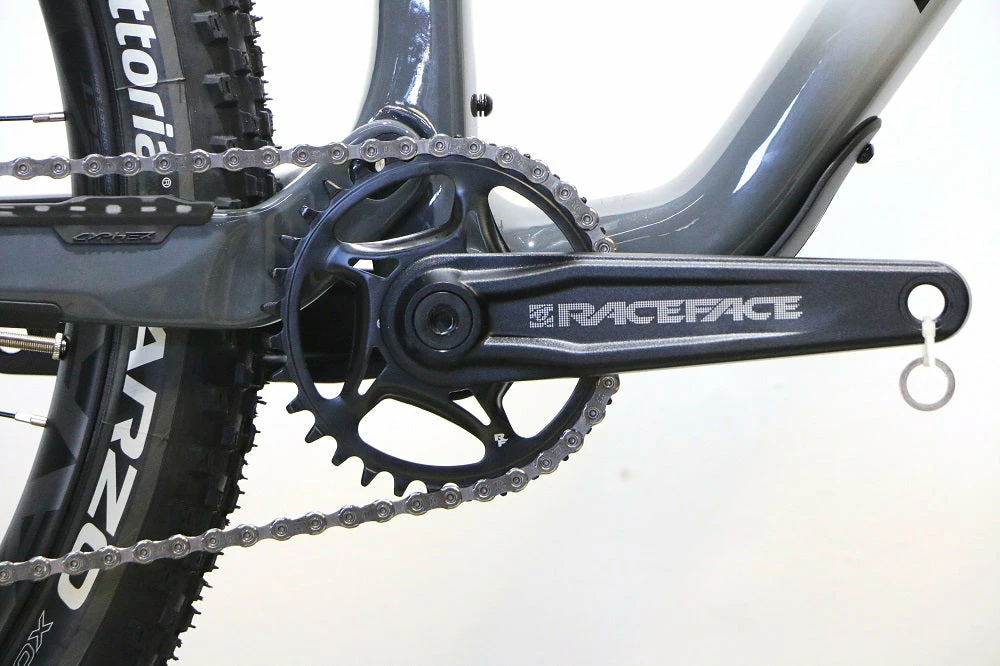

CHAINWHEEL
RACEFACE RIDE 32T
RACEFACE RIDE / 137 / DM32 STEEL / 175mm / BLACK / 12 SPEED / S – 170mm CRANKARM / M+L+XL – 175mm CRANKARM

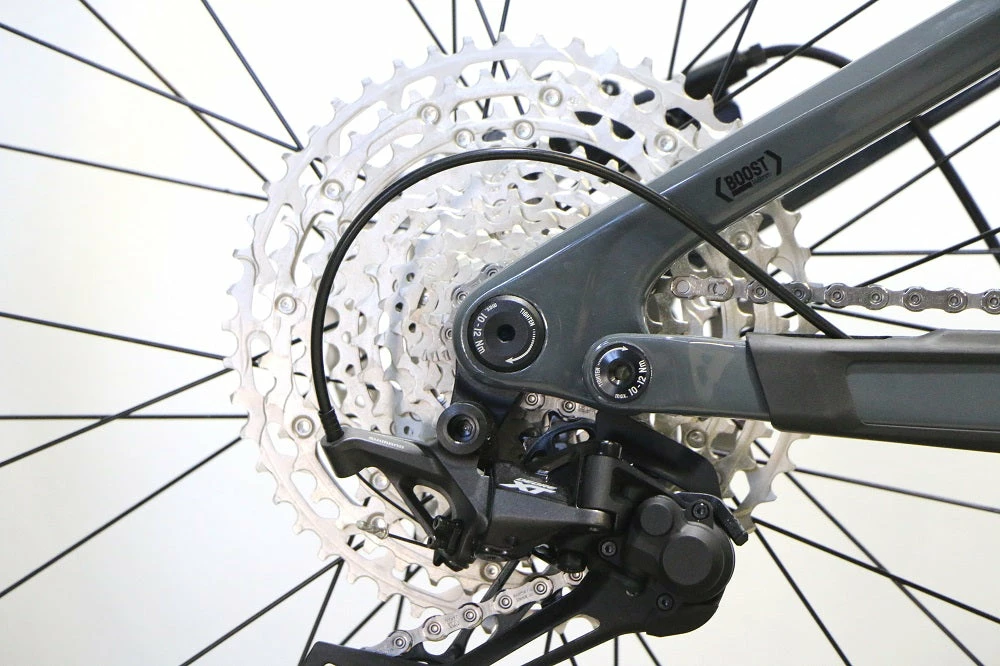

DERAILLEUR REAR
SHIMANO XT RD-M8100-SGS

SHIFTER RIGHT
SHIMANO SLX SL-M7100-R

CHAIN
CN-M6100-12

FREEWHEEL
DEORE CS-M6100 12 10-51T

BB SET
FP-B902W, BC1.37″X24t, One piece

SPEED
12 SPEED

BRAKE LEVER
SRAM LEVEL

BRAKE FRONT
SRAM LEVEL WITH 180MM

BRAKE REAR
SRAM LEVEL WITH 160MM

BRAKE CABLE
BLACK

RIMS
RACEFACE AR 32H
RACEFACE RIM AR OFFSET 27 29″ 32H GRY 19

HUB FRONT
TR PRO ALLOY BLACK BOOST
DC-511, THRU, 14Gx32H-M15x110, Boost

HUB REAR
TR PRO ALLOY BLACK BOOST
DC-3248, 8/9/10s, THRU, 14Gx32H-M12x148, Boost

SPOKES
Stainless BLACK 14Gx290mm / 14Gx288mm

TUBE
29″ F/V

TYRES
VITTORIA BARZO 29″ X 2.35
XC-TRAIL 120TPI NYLON / 4C GRAPHENE 2.0 COMPOUND / TNT / ANTHRACITE SIDEWALL

GRIP
TR LOCKRING GRIP

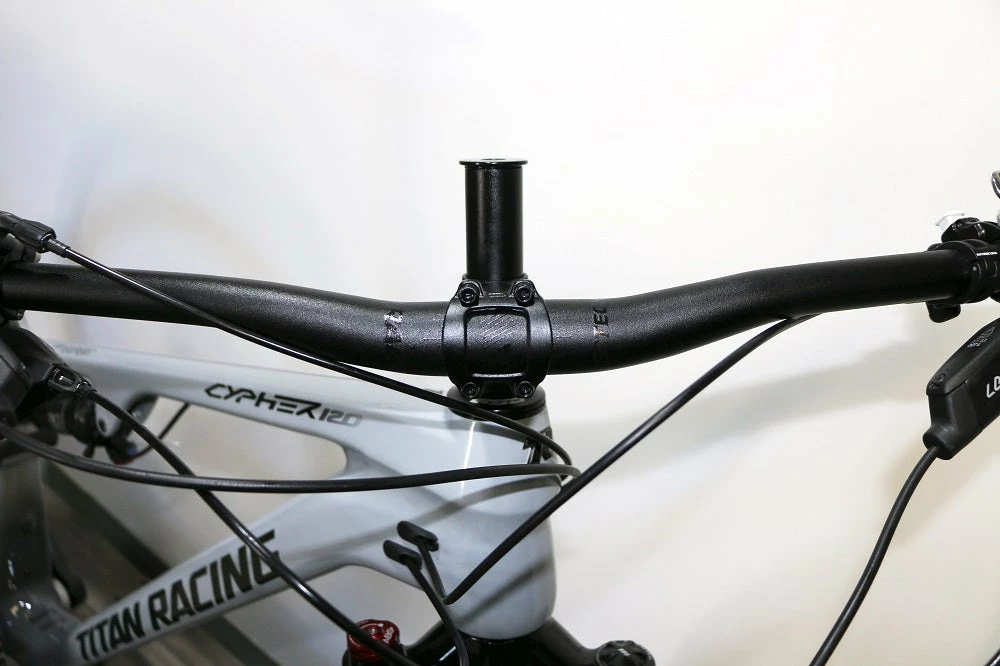

HANDLEBAR
TR PRO ALLOY RISER BAR 780MM
PROMAX HB-3188DB R15 780MM

HANDLEBAR STEM
TR PRO ALLOY STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / S = 60mm / M/L = 80mm / XL = 100mm

HEADSET
FSA NO.42/ACB (BEARING)

SPACER
10mm X 2 PCS

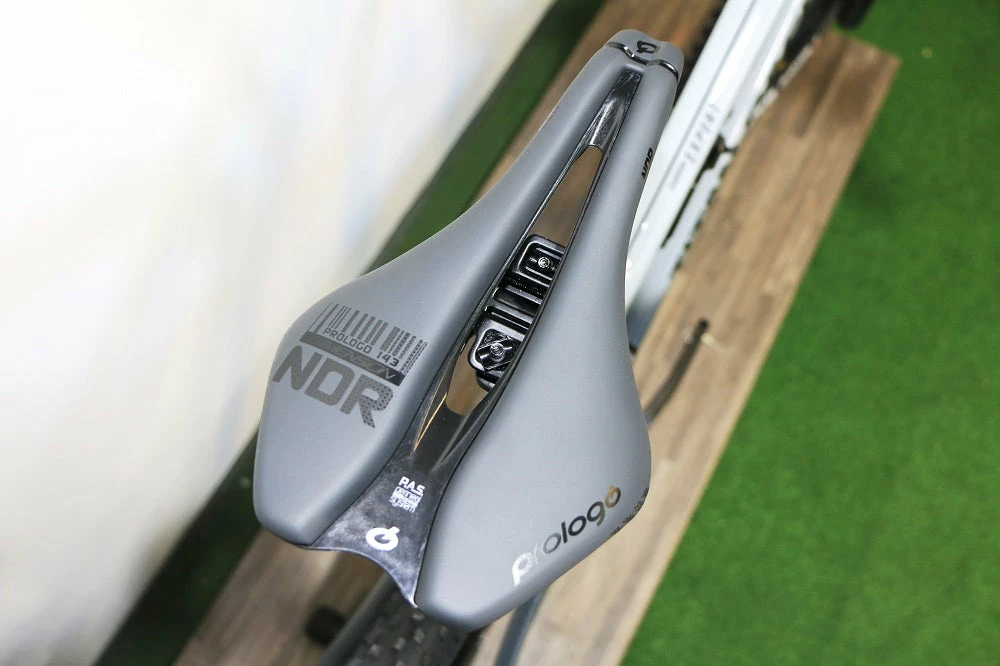

SADDLE
PROLOGO DIMENSION NDR STN ANTHR/BLACK NYLON INJ

SEAT POST
X-FUSION MANIC WITH REMOTE 31.6
S = 100MM / M+L+XL = 125MM / XC/TRAIL ALLOY CONSTRUCTION / INFINITE ADJUST / INTERNAL CABLE ROUTING / PLASTIC MANIC REMOTE 31.9

SEAT CLAMP
PROMAX MX-70 ALLEN KEY 34.9MM
