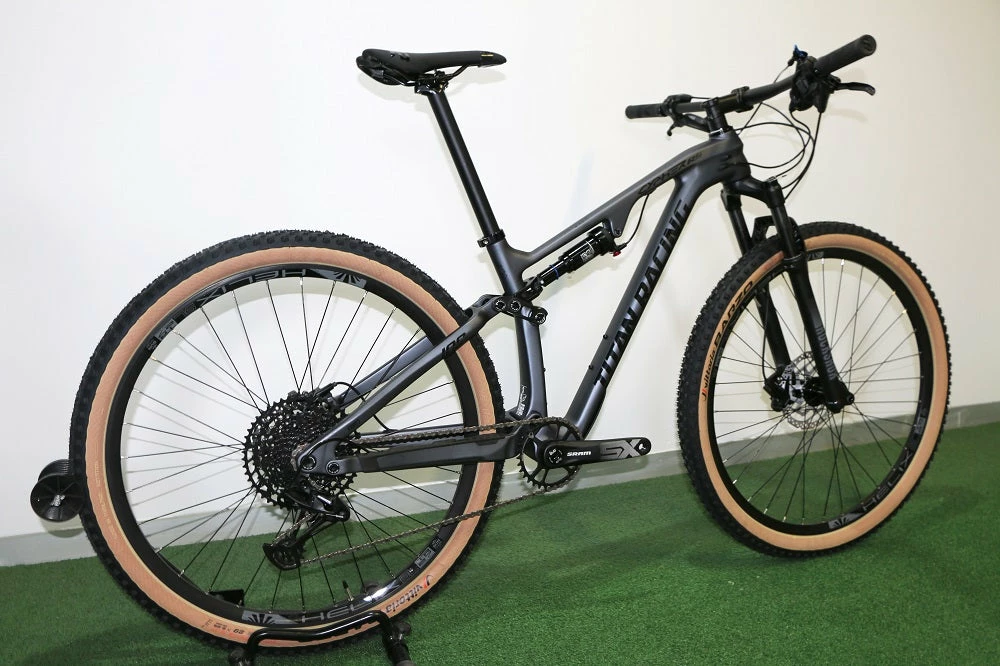

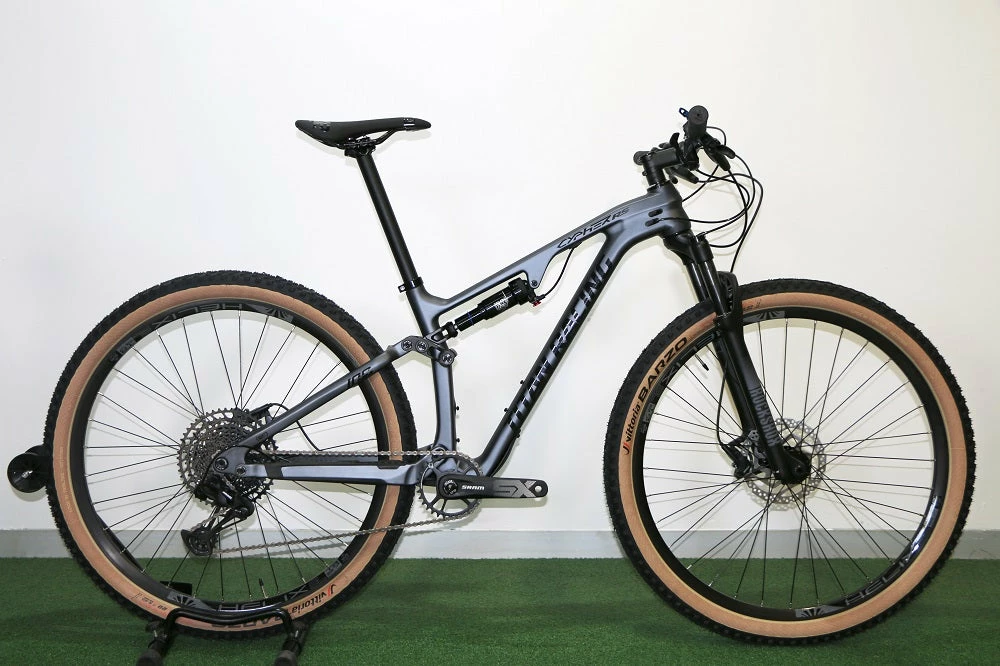

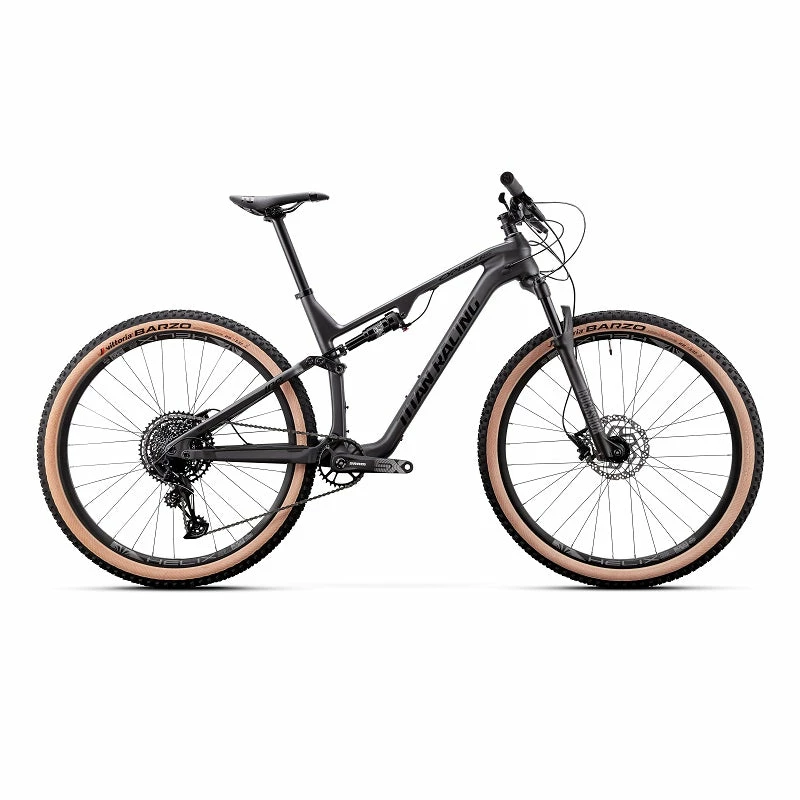

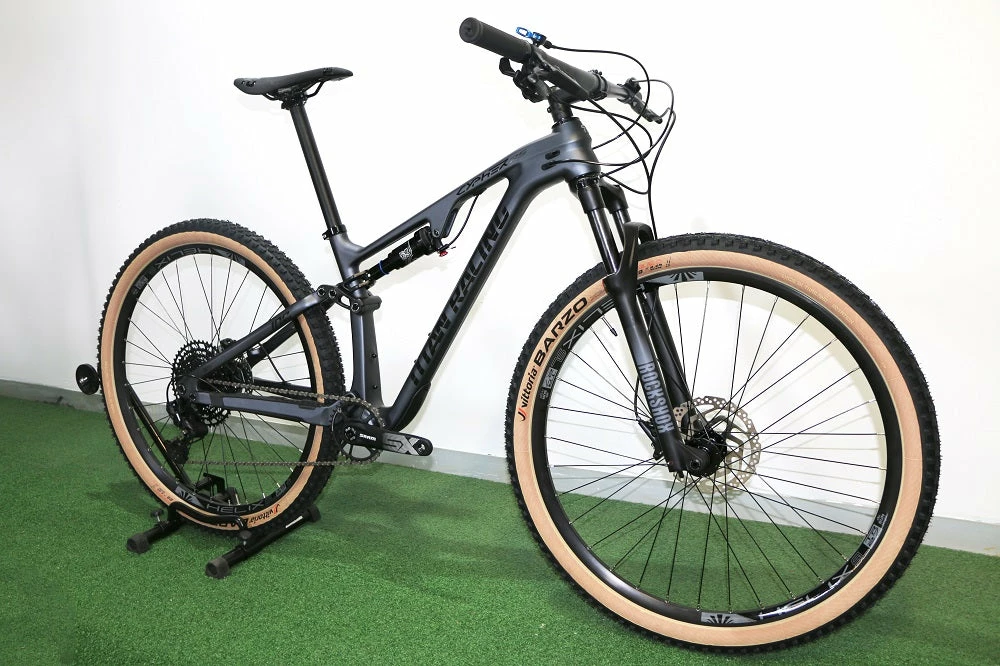

TITAN Cypher RS Carbon Dash (2023)

FRAME

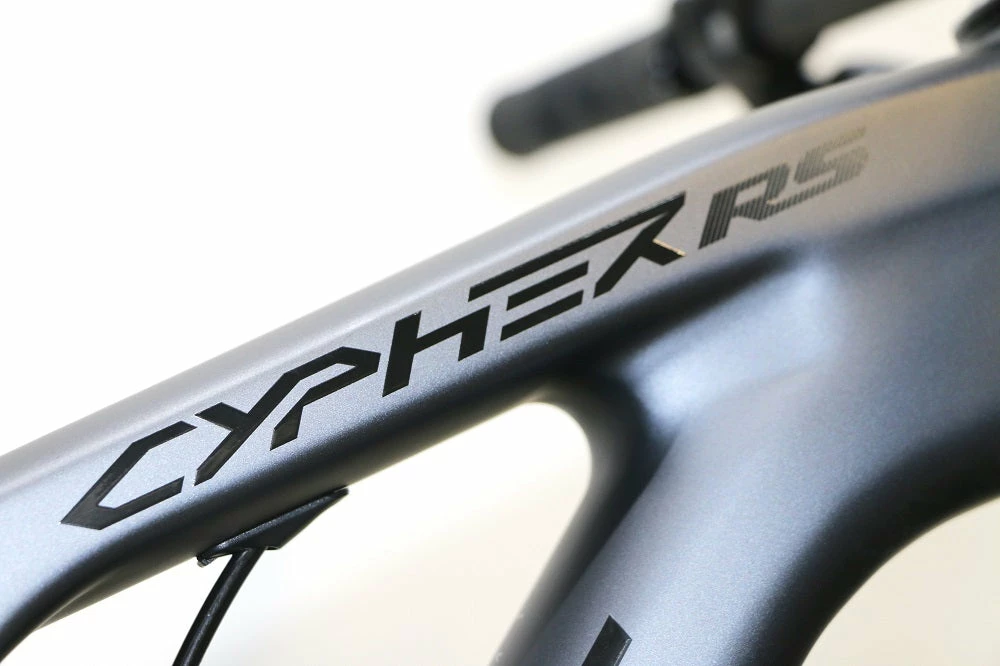

CYPHER CARBON FRAMESET
FLIP CHIP / INTERNAL CABLE ROUTING / BOOST 148MM WITH THRU AXLE / BSA 73MM

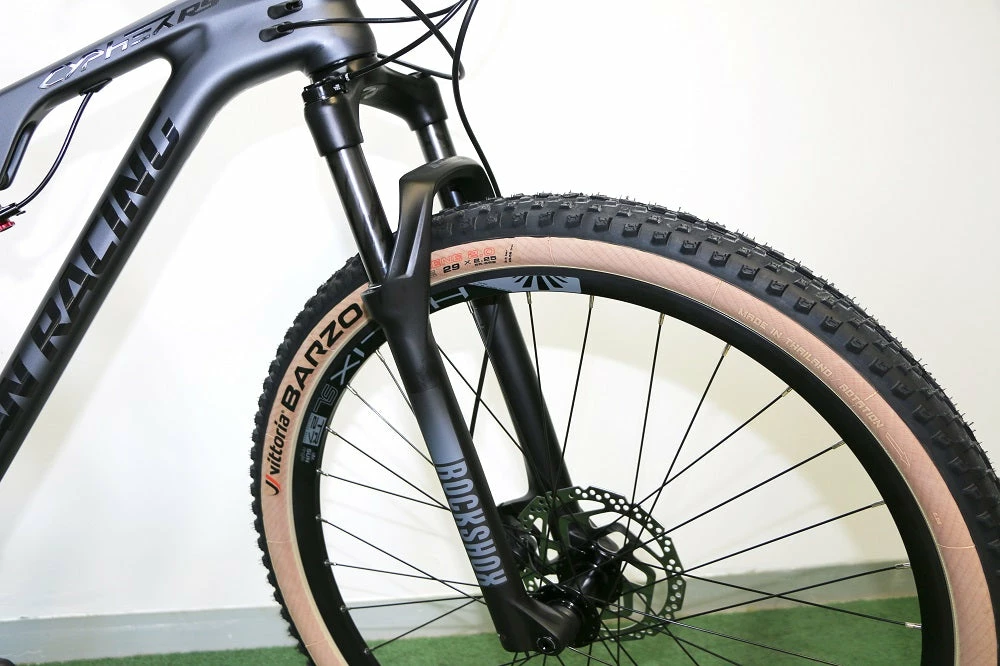

FORK
ROCKSHOX JUDY SILVER AIR 100mm
29″ / 100mm / SOLO AIR SPRING / 30mm STANCHIONS / TURNKEY DAMPER / 51mm OFFSET / DIFFUSION BLACK / 15 x 110mm THRU AXLE BOOST / FS JUDYS TK R 29 SB 100 DFB FB 51 A3

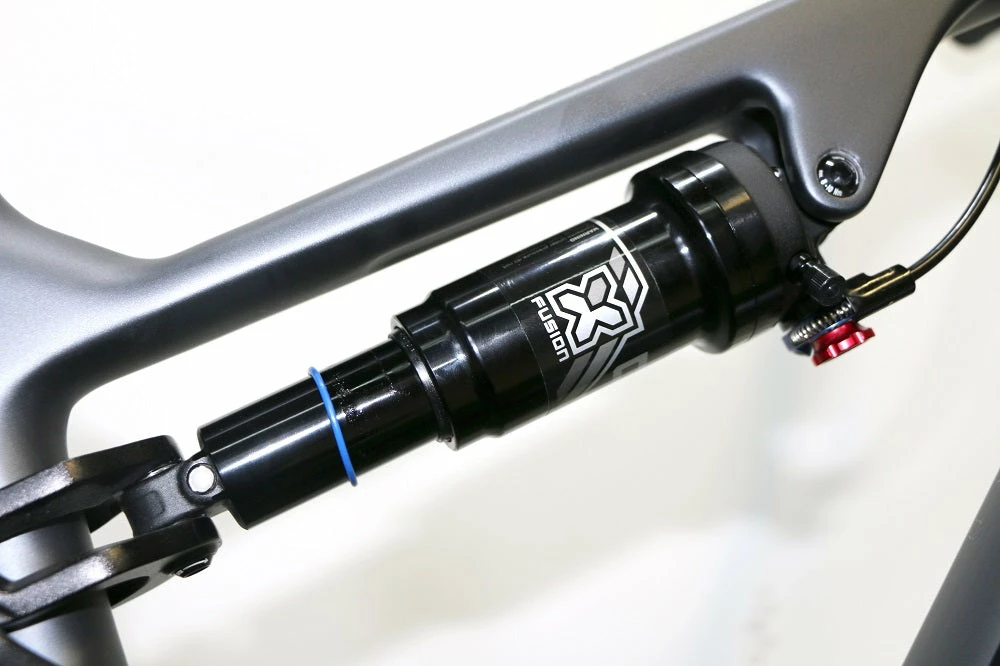

REAR SHOCK
X-FUSION O2 RLR WITH QUICK FLIP REMOTE
XC-TRAIL / AIR SPRING / REBOUND AND LOCKOUT ADJUSTMENT / METRIC / 190 x 37.5mm D TUNE

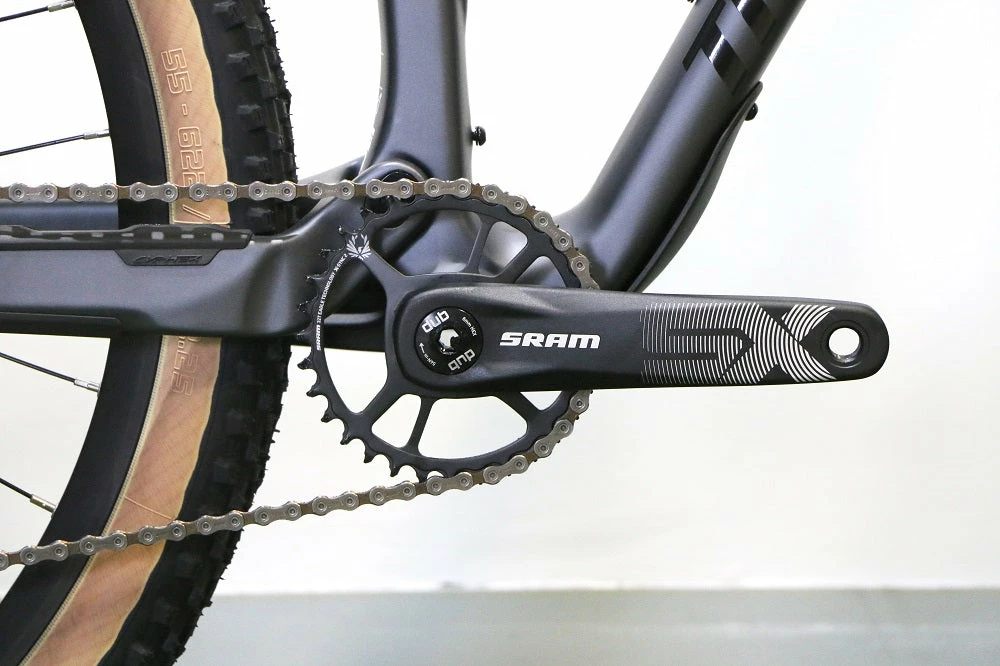

CHAINWHEEL
SRAM SX 32T DUB
SRAM SX DUB BSA 73mm / 32T / 12 SPEED / ALLOY CRANKARM / STEEL CHAINRING / 52mm CHAINLINE EAGLE BOOST 148 / NO GUARD S – 170mm CRANKARM / M+L+XL – 175mm CRANKARM

DERAILLEUR REAR
SRAM SX

SHIFTER RIGHT
SRAM SX

CHAIN
SRAM SX EAGLE

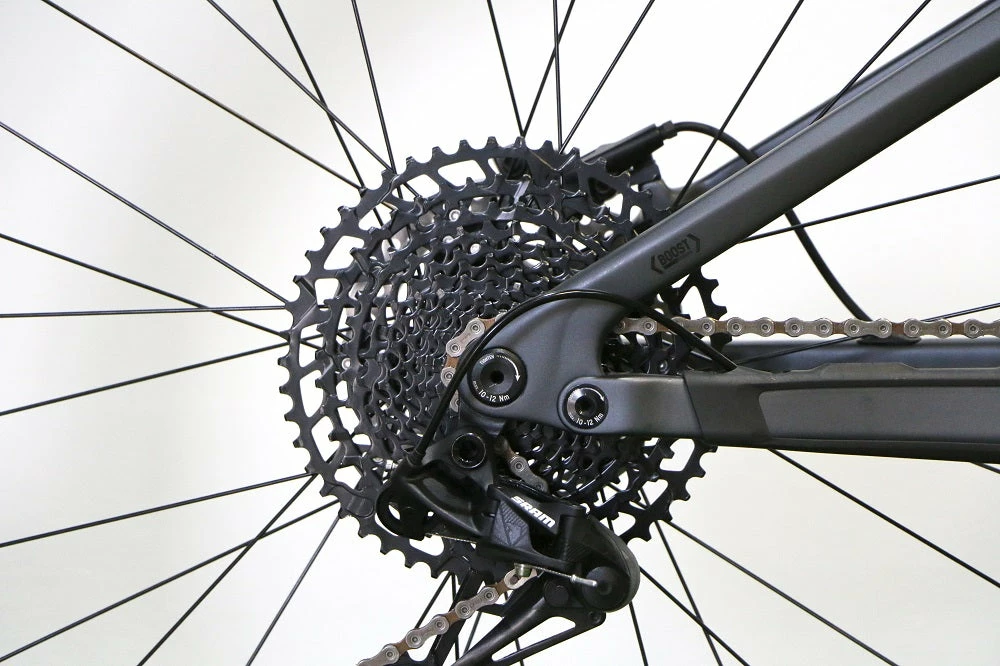

FREEWHEEL
CS PG1210 EAGLE 11-50T

BB SET
SRAM DUB BSA MTB73

SPEED
12 SPEED

BRAKE LEVER
SRAM LEVEL

BRAKE FRONT
SRAM LEVEL WITH 180MM

BRAKE REAR
SRAM LEVEL WITH 160MM

BRAKE CABLE
BLACK

RIMS
SUNRINGLE HELIX SL 32H
SUNRINGLE HELIX SL 27 TL 32 HOLE

HUB FRONT
TR PRO ALLOY BLACK BOOST
DC-511, THRU, 14Gx32H-M15x110, Boost

HUB REAR
TR PRO ALLOY BLACK BOOST
DC-3248, 8/9/10s, THRU, 14Gx32H-M12x148, Boost

SPOKES
Stainless BLACK 14Gx290mm / 14Gx288mm

TUBE
29″ F/V

TYRES
VITTORIA BARZO 29″ X 2.25
XC-RACE 120TPI NYLON / 4C GRAPHENE 2.0 COMPOUND / TLR / TAN SIDEWALL

GRIP
TR LOCKRING GRIP

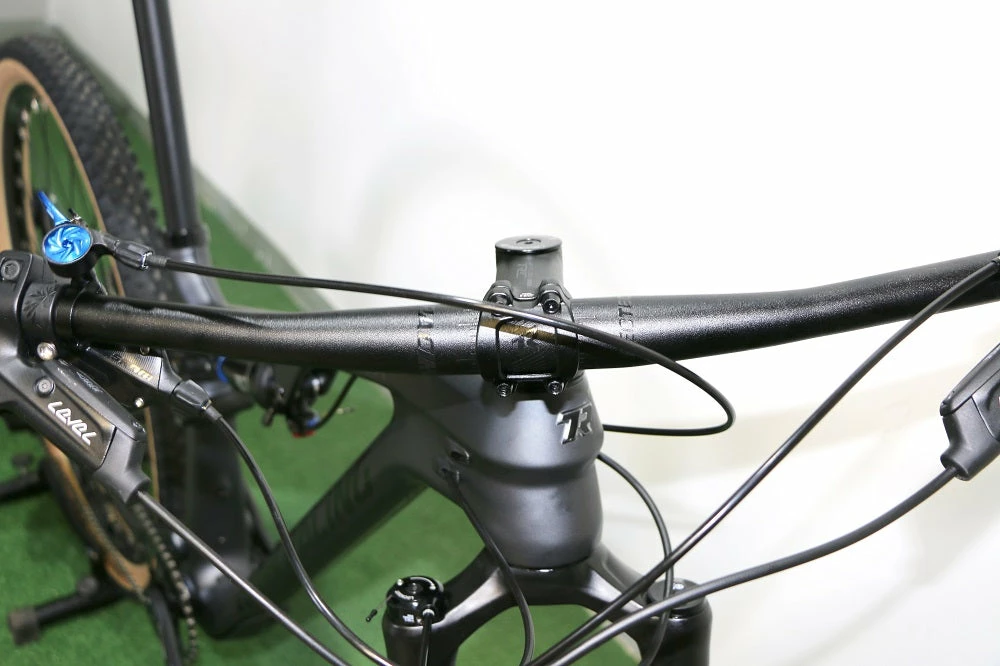

HANDLEBAR
TR PRO FLAT H/BAR 760mm
PROMAX HB-3188DB AL6061 / 31.8mm BAR BORE / R5 FLAT 760MM

HANDLEBAR STEM
TR PRO H/BAR STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / S = 60mm / M/L = 80mm / XL = 100mm

HEADSET
FSA NO.42/ACB (BEARING)

SPACER
10mm X 2 PCS

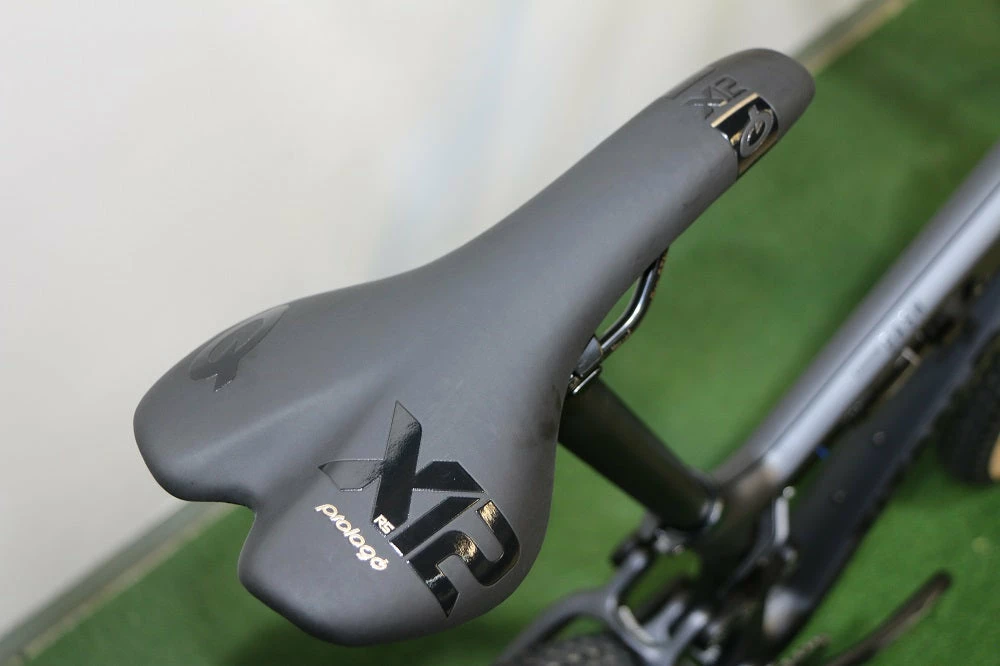

SADDLE
PROLOGO NAGO X12 RS STN NYLON INJ MICROFIBER P3

SEAT POST
TR PRO ALLOY SEAT POST 31.6mm
PROMAX SP-2019 AL6061 31.6 400mm

SEAT CLAMP
NEW MX-95RT ALLEN KEY TYPEs
