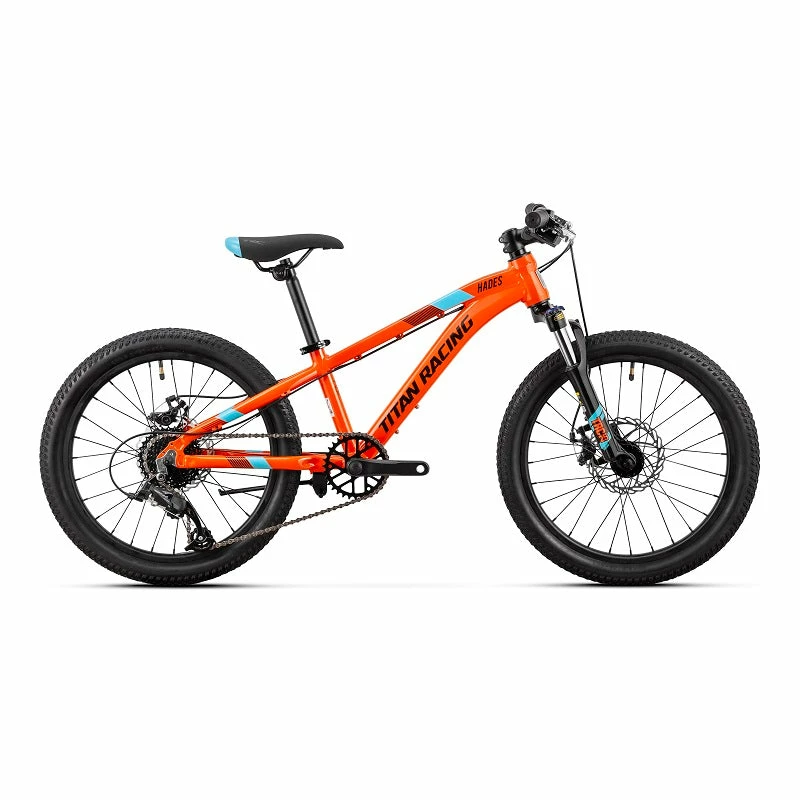

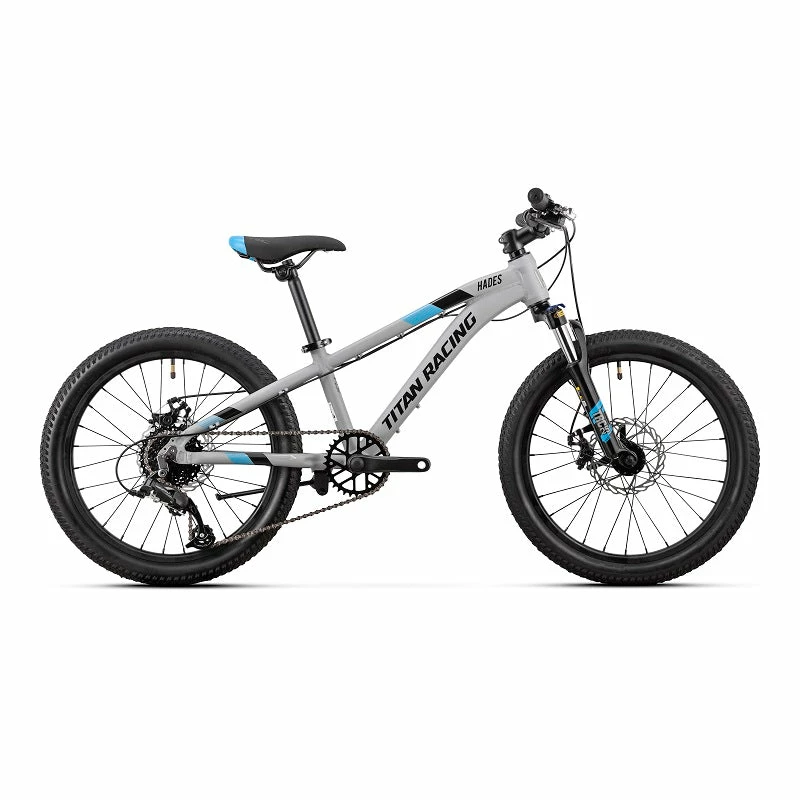

TITAN Hades 20″ Disc (2022)

FRAMESET
FRAME
TR JUNIOR BOYS 20″ 6061 Aluminium DISC FRAME
JUNIOR GEOMETRY / MACHINE FORMED TUBING / QR REAR AXLE / DISC ONLY
SIZE
20″x10″

SUSPENSION
FORK
TRC 565 DISC 40mm
20″ / 40mm / COIL SPRING / MECHANICAL LOCKOUT
FORK FENDER
N/A

DRIVETRAIN
CHAINWHEEL
PROWHEEL 32T ALLOY
PROWHEEL A10B W/O CHAINGUARD 32T 127MM Alloy
DERAILLEUR FRONT
NIL
DERAILLEUR REAR
MICROSHIFT MEZZO RD-M36S 1 X 8
SHIFTER LEFT
N/A
SHIFTER RIGHT
MICROSHIFT TS71-8 1 X 8
CHAIN
KMC Z7
FREEWHEEL
MICROSHIFT CS-H082 11-34T
BB SET
CH-52, One Piece, BC1.37”×24T, One piece
SPEED
1 X 8 SPEED

BRAKES
BRAKE LEVER
TEKTRO TS-327A
BRAKE FRONT
JAK MECHANICAL DB 140mm
BRAKE REAR
JAK MECHANICAL DB 140mm
BRAKE CABLE
BLACK

WHEELS
RIMS
TR JR 20″ DISC RIM 28H
TR 20″ ALLOY BLACK / DOUBLE WALL / A/V / 14G x 28H (MD16)
HUB FRONT
ALLOY DISC BLACK Q/R
DC-1420, 14Gx28H, Q/R-M9x100x108mm
HUB REAR
ALLOY DISC BLACK Q/R
DC-1425, 8/9/10s, 14Gx28H, Q/R-M10x135x145mm
SPOKES
STEEL, ED 14Gx180mm / 14Gx182mm
TUBE
A/V
TYRES
VEE CROWN GEM 20 X 2.25
TRAIL – XC / MPC COMPOUND / 27TPI WIRE BEAD SKINWALL (NATURAL WALL)

COMPONENTS
GRIP
TR JUNIOR GRIP
HANDLEBAR
TR JUNIOR RISER 560MM
TR AL-153 RISER 560MM
HANDLEBAR STEM
TR JUNIOR STEM 45MM
TR-SM-003 45MM
HEADSET
FP-807, Ball Retainer,￠28.6×￠44×￠30mm
SPACER
10mm
SADDLE
SR 7038J
SEAT POST
TR JUNIOR 27.2mm 250mm
TR SP-102 ALLOY 27.2mm 250mm
SEAT CLAMP
TR AR-101 SQR115
KICKSTAND
PEDAL
KIDS
