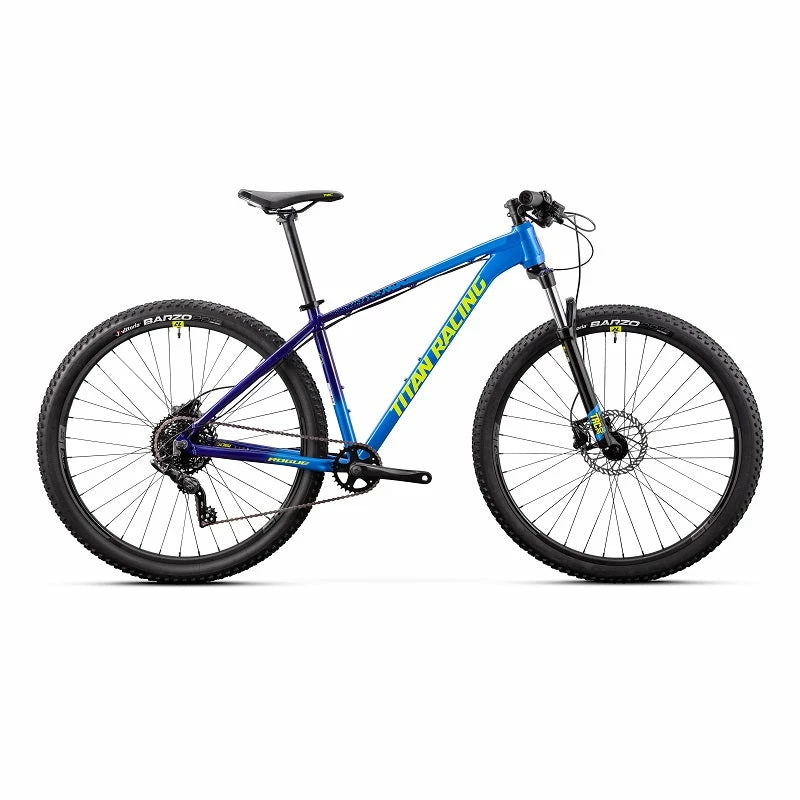

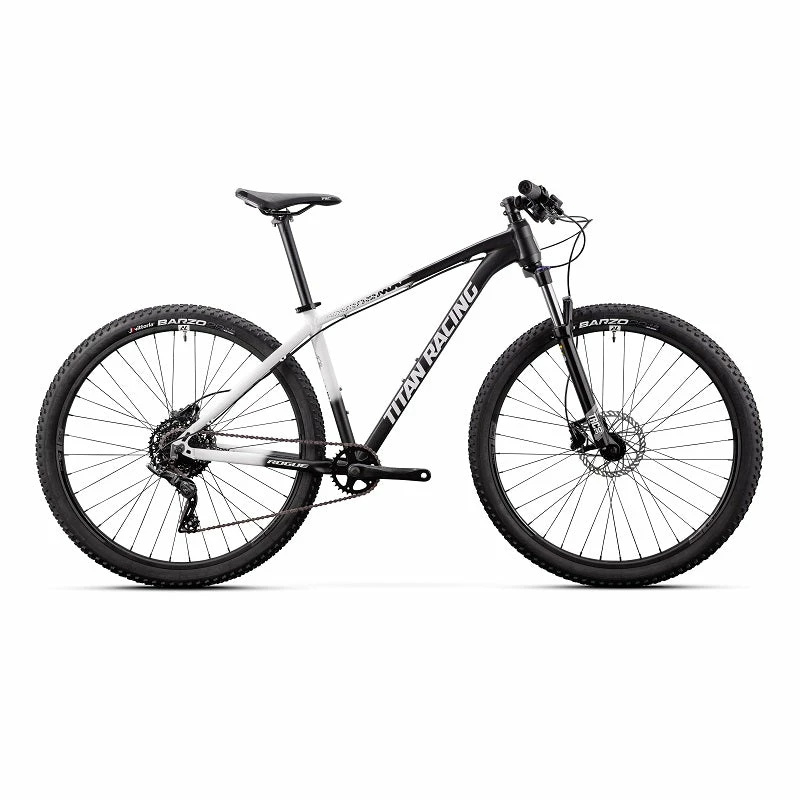

TITAN Rogue Ryde (2022)

FRAMESET

FRAME
ROGUE 29″ 6061 Aluminium FRAME
MODERN GEOMETRY / MACHINE FORMED TUBING / STANDARD 135mm QR 9mm REAR AXLE / DISC ONLY

SUSPENSION

FORK
TRC 595 29″ COIL 100mm
29″ / 100mm / COIL SPRING / 30mm STANCHIONS / MAGNESIUM LOWER LEG 9mm QR / HYDRAULIC LOCKOUT
FORK FENDER
N/A
REAR SHOCK
N/A
N/A

DRIVETRAIN

CHAINWHEEL
PROWHEEL 1 X 8 32T
PROWHEEL / 32T / 8 SPEED / ALLOY CRANK / STEEL CHAINRING / NO GUARD / S – 170mm CRANKARM / M+L+XL – 175mm CRANKARM
DERAILLEUR FRONT
NIL
DERAILLEUR REAR
MICROSHIFT RD-M5185M ACOLYTE
SHIFTER LEFT
NIL
SHIFTER RIGHT
MICROSHIFT SL-M7180-R
CHAIN
KMC Z7
FREEWHEEL
MICROSHIFT CS-H083 12-46T
BB SET
CH-52, One Piece, BC1.37”×24T, One piece
SPEED
1 x 8 SPEED

BRAKES

BRAKE LEVER
PROMAX SOLVE-ST
BRAKE FRONT
PROMAX SOLVE-ST DSK-925 WITH 180mm ROTOR
BRAKE REAR
PROMAX SOLVE-ST DSK-925 WITH 160mm ROTOR
BRAKE CABLE
BLACK

WHEELS

RIMS
TR COMP RIM 28H
TR MD16 AL6061 36H 29″ MATT BLACK
HUB FRONT
ALLOY Q/R DISC BLACK
DC-1420, 14Gx28H, Q/R-M9x100x108mm
HUB REAR
ALLOY Q/R DISC BLACK
14G DC-1425, 8/9/10s, 14Gx28H, Q/R-M10x135x145mm
SPOKES
STEEL, ED BLACK 14Gx290mm / 14Gx288mm
TUBE
29″ A/V
TYRES
VITTORIA BARZO 29″ X 2.25
XC / 1C COMPOUND / 26TPI NYLON RIGID BLACK WALL

COMPONENTS

GRIP
TR STD MTB GRIP
HANDLEBAR
TR COMP FLAT H/BAR 750mm
TR HB-M003 FLAT 750mm
HANDLEBAR STEM
TR COMP H/BAR STEM
TR SM-001 ALLOY OVERSIZED XS/S = 60mm / M/L = 80mm / XL = 100mm
HEADSET
FP-871, Ball retainer, Semi, ￠28.6×￠44×￠52mm
SPACER
10mm X 2 PCS
SADDLE
YBT-K245F041
SEAT POST
TR COMP 31.6mm
TR SP-003D RIGID ALLOY 31.6mm 350mm
SEAT CLAMP
PROMAX 327 Q
