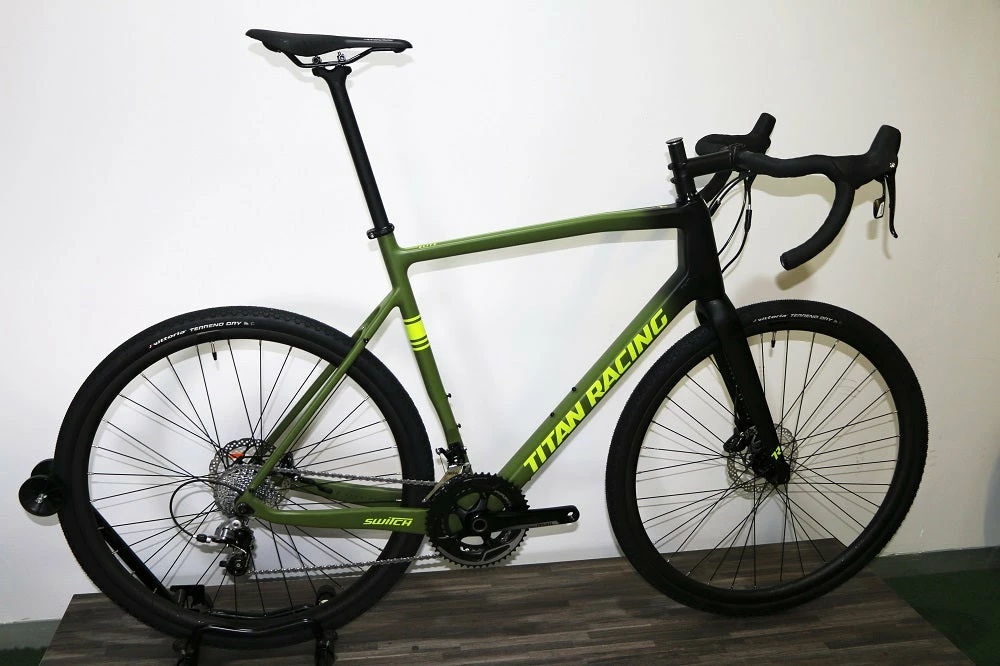

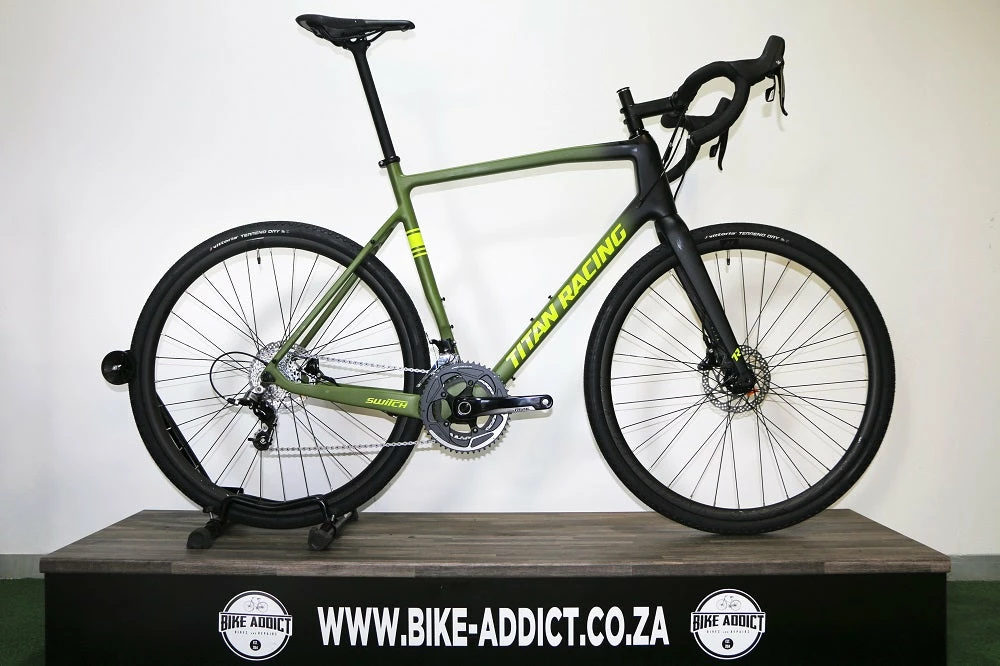

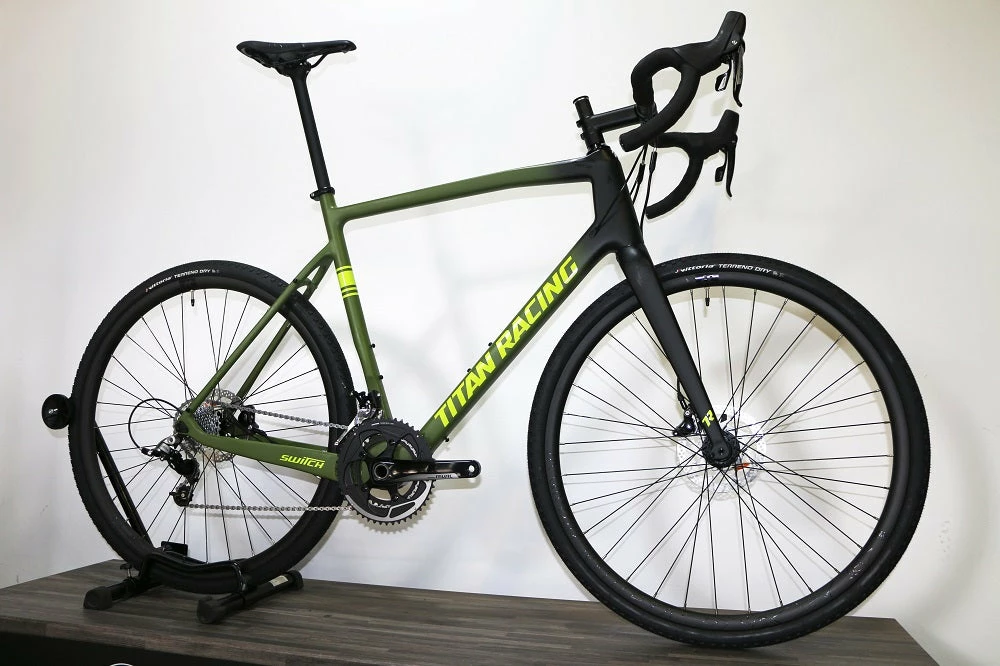

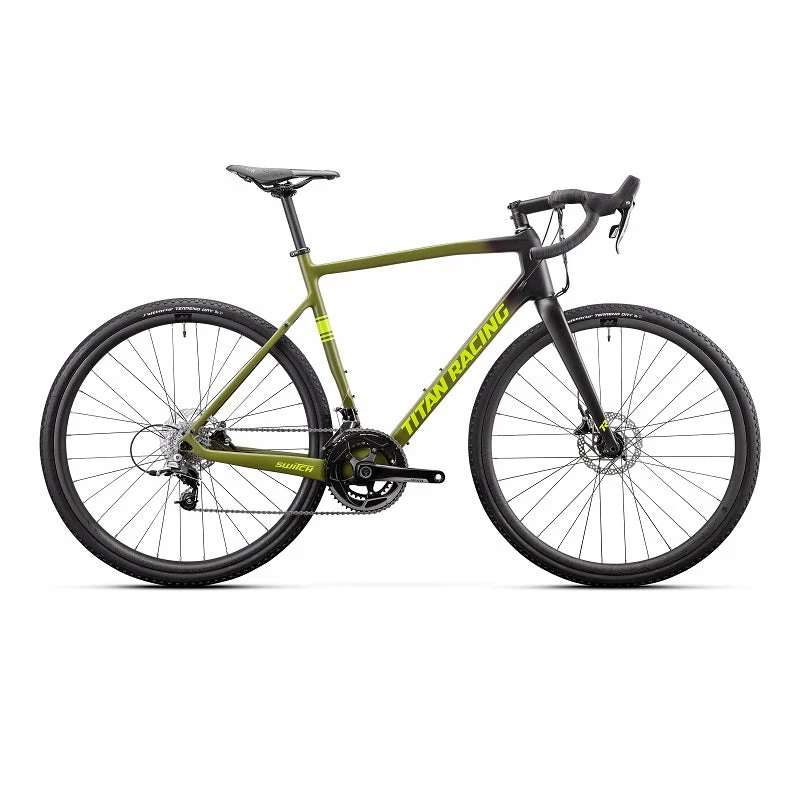

TITAN Switch Carbon Elite (2023)

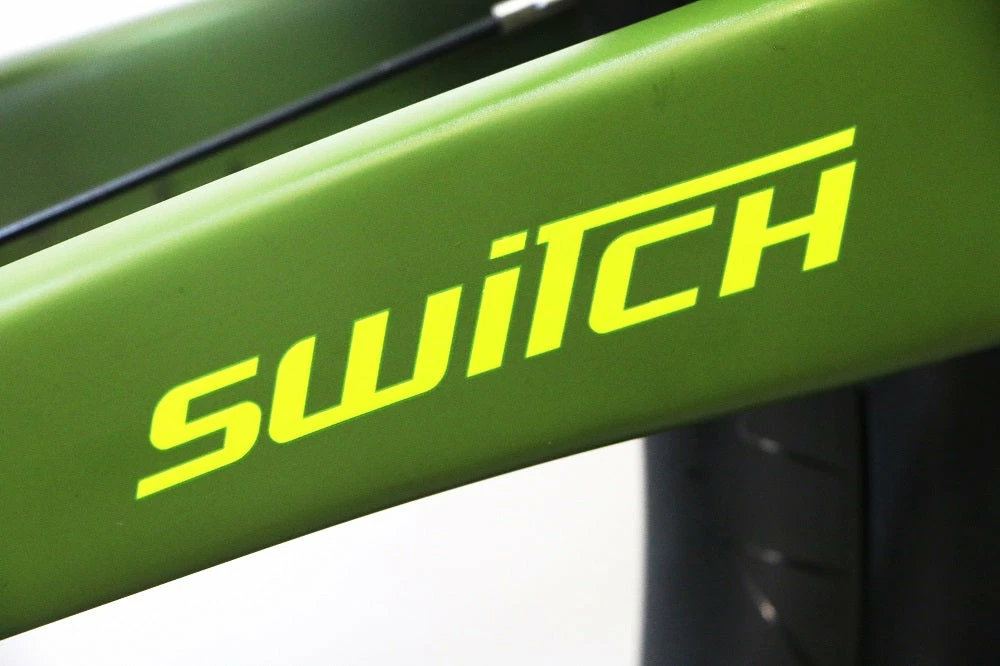

FRAME
SWITCH CARBON GRAVEL FRAME
GRAVEL RACE GEOMETRY / HMF CARBON / INTERNAL CABLE ROUTING / 12mm THRU AXLE REAR / DISC ONLY

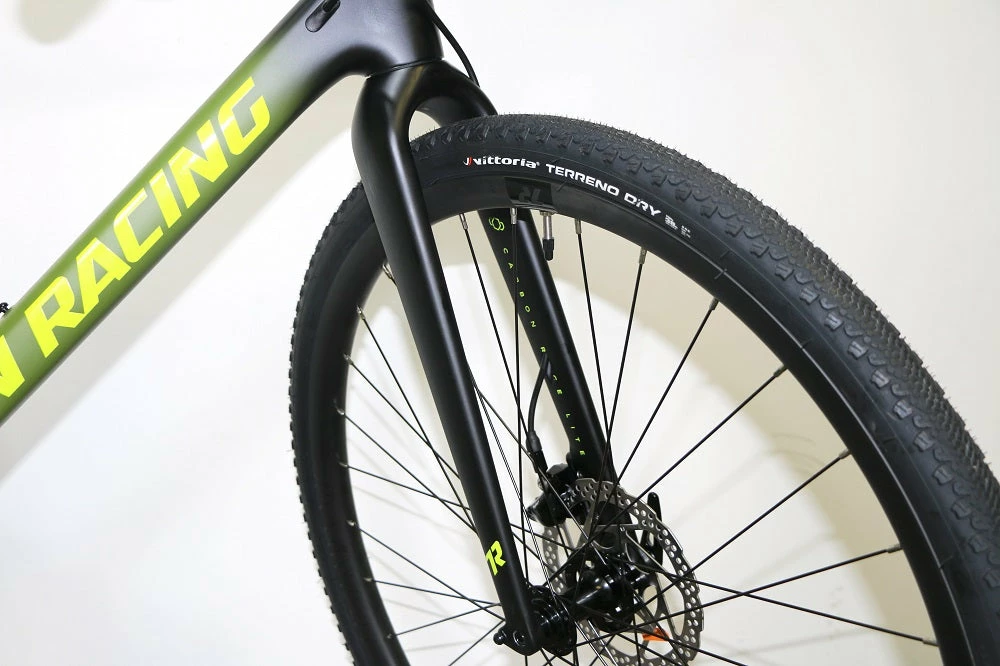

FORK
SWITCH CARBON 700C
HMF CARBON 12mm THRU AXLE

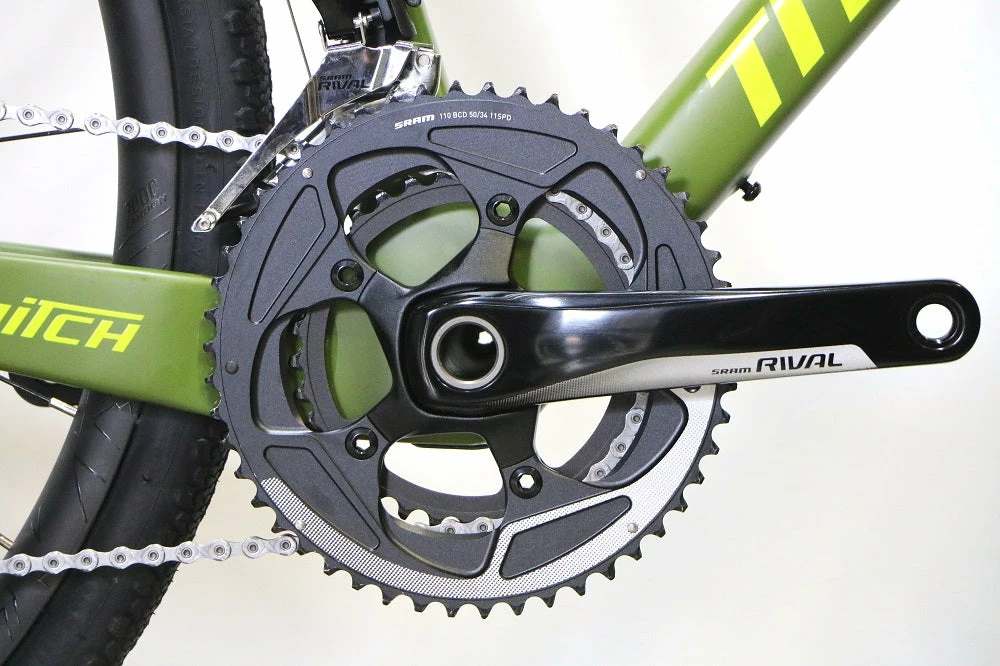

CHAINWHEEL
SRAM RIVAL 46-36T
SRAM RIVAL / 46-36T / 11 SPEED /ALLOY CRANK ARMS / 45mm CHAINLINE / S – 170mm CRANKARM / M+L+XL – 175mm CRANKARM ( FC-RIV-2X11-A1)

DERAILLEUR FRONT
SRAM RIVAL 22 YAW FD-RIV-B1

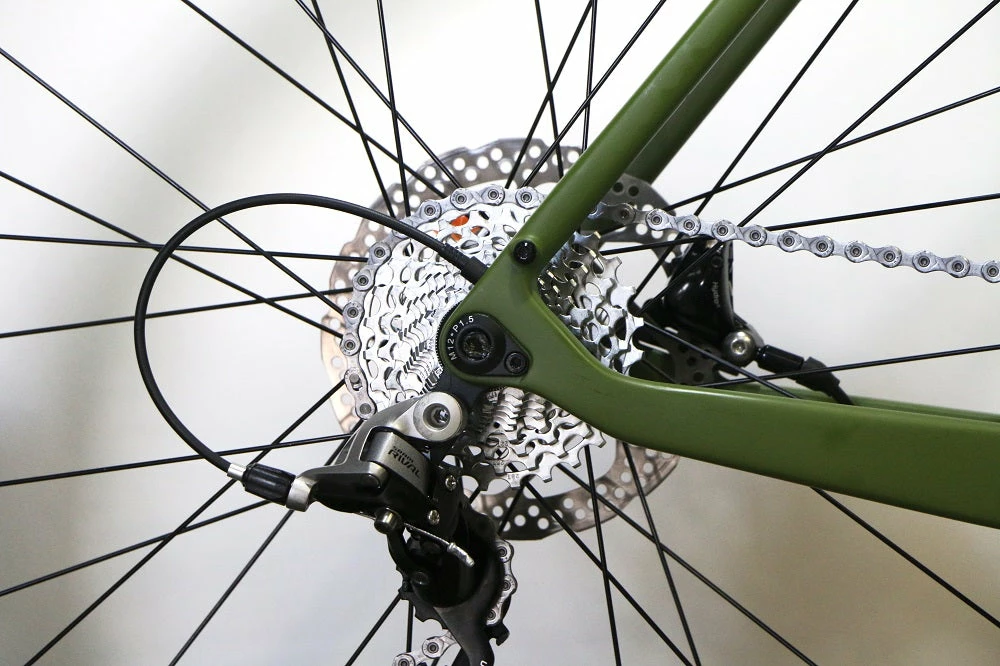

DERAILLEUR REAR
SRAM RIVAL 22 MAX 11-32CS

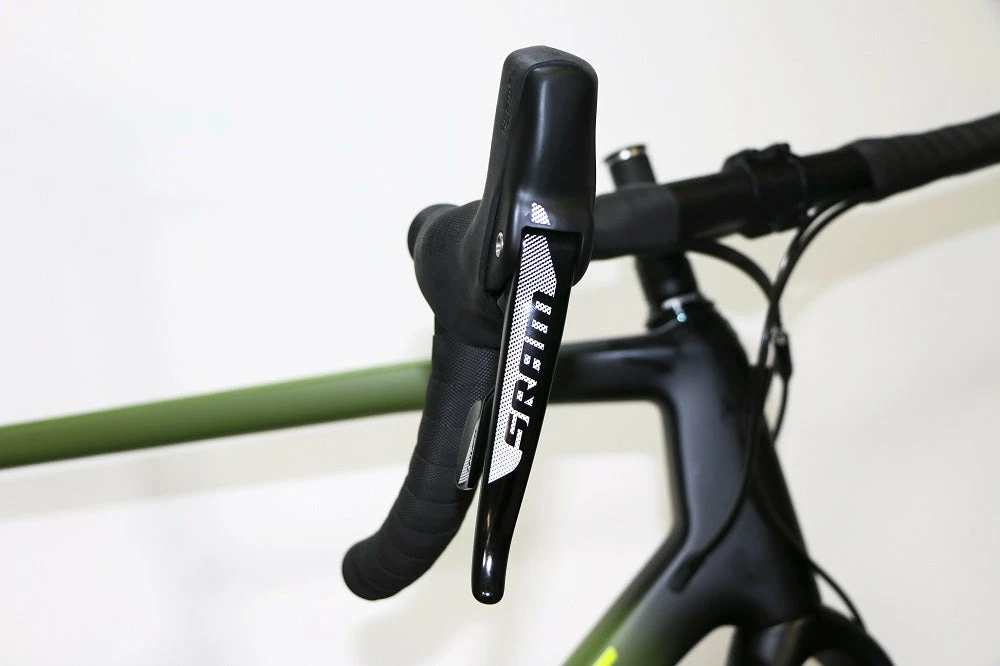

SHIFTER LEFT
SRAM RIVAL 22 SB-RIV-HRD-A1

SHIFTER RIGHT
SRAM RIVAL 22 SB-RIV-HRD-A1

CHAIN
SRAM PC-1130 11 SPEED

FREEWHEEL
SRAM CS PG-1130 11-32T

BB SET
ATTACHED

SPEED
11 SPEED

BRAKE LEVER
ATTACHED

BRAKE FRONT
SRAM RIVAL HRD

BRAKE REAR
SRAM RIVAL HRD

BRAKE CABLE
BLACK

RIMS
TR CARBON DISC 32 HOLE
TR CARBON M32W25H9 APEX 32 HOLE, F/V

HUB FRONT
TR PRO DISC
RX-812, 2SB, THRU, 14Gx32H-M12x100MM

HUB REAR
TITAN PRO DISC
RX-305, 4SB, 8/9/10/11s, THRU, 14Gx32H-M12x142MM

SPOKES
BLACK STAINLESS

TUBE
700C F/V

TYRES
VITTORIA TERRENO DRY 700 X 38C
GRAVEL 120TPI NYLON / 1C GRAPHENE 2.0 COMPOUND / TNT / ANTHRACITE SIDEWALL

GRIP
PLAIN BLACK – NO LOGO

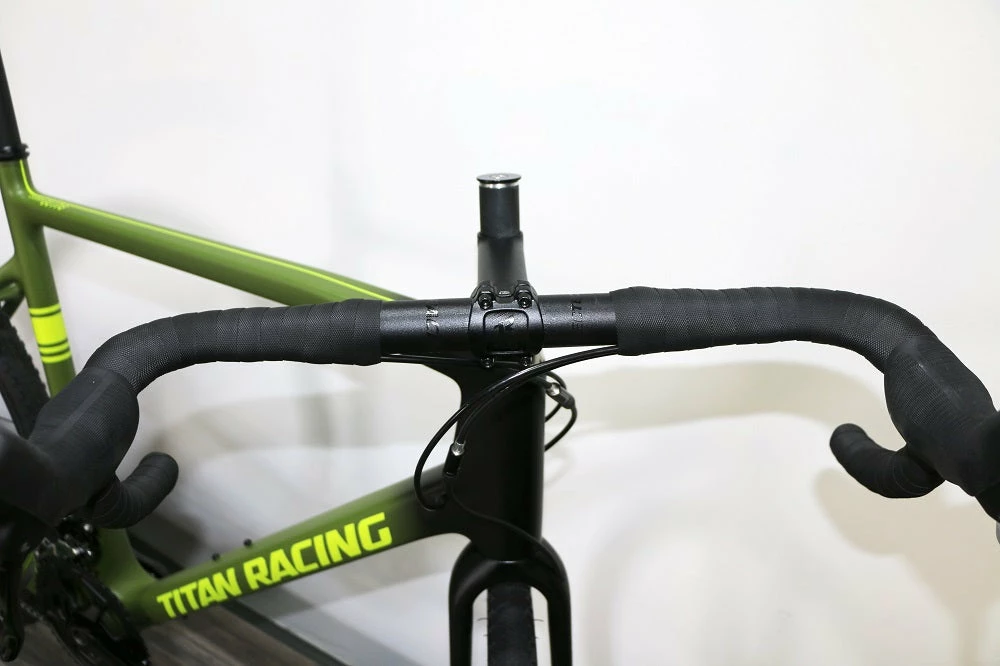

HANDLEBAR
TR GRAVEL PRO H/BAR
HB-3057DB-ICR (Sram) 44W*125H*10 degrees / 31.8MM / S = 420mm / M+L+XL = 440mm

HANDLEBAR STEM
TR PRO H/BAR STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / XS+S = 90mm / M+L+XL = 105mm

HEADSET
FSA

SPACER
2 X 10MM

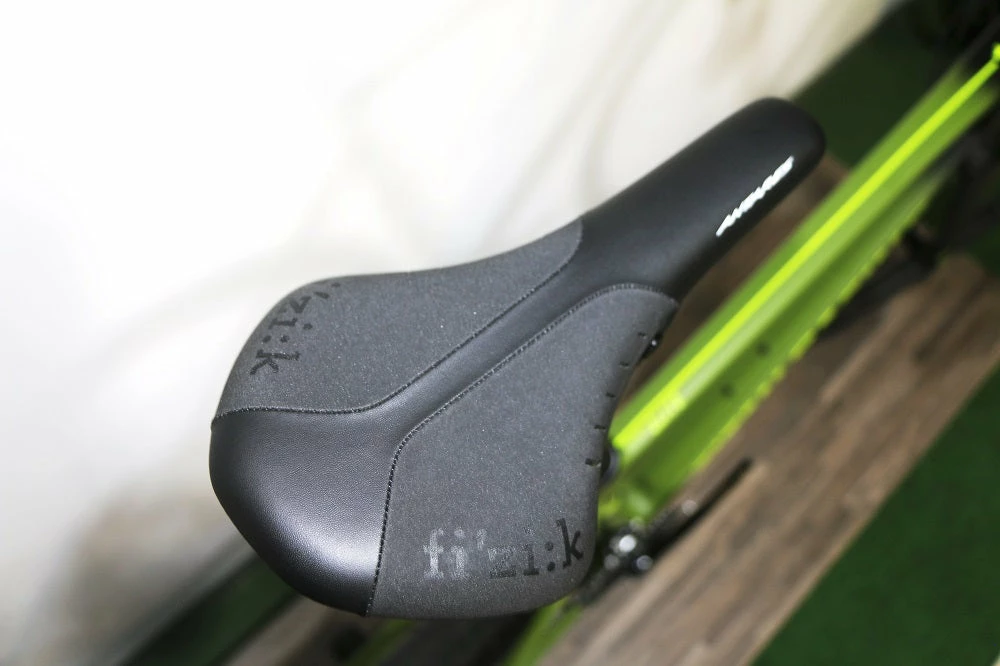

SADDLE
NEW FIZIK ALLIANTE GRAVEL

SEAT POST
TR CARBON PRO 27.2MM
FB SP-C212 CARBON RIGID 27.2mm 400mm

SEAT CLAMP
NEW MX-95RT ALLEN KEY TYPE
