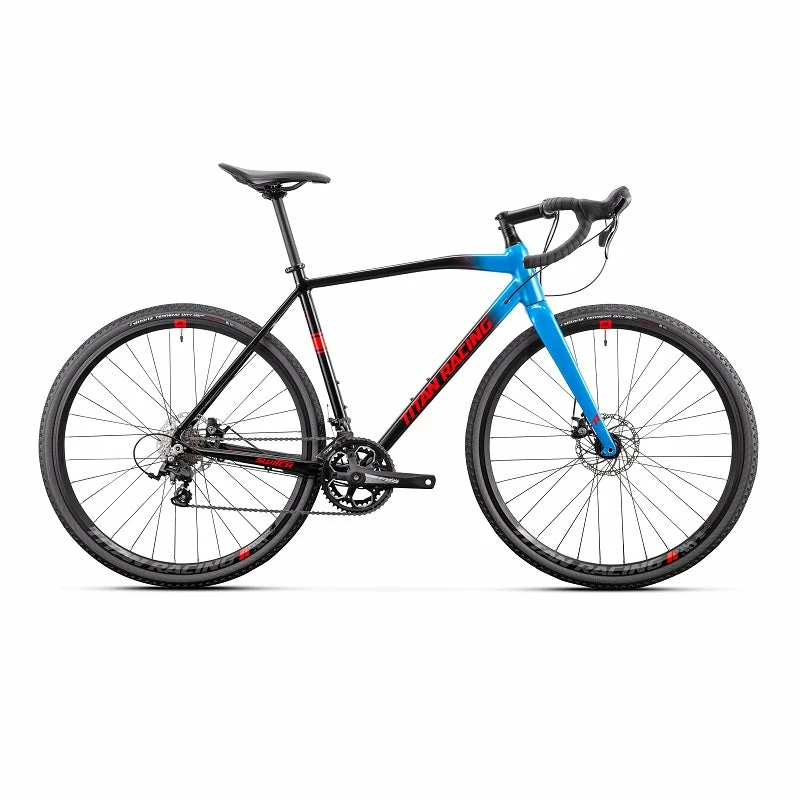

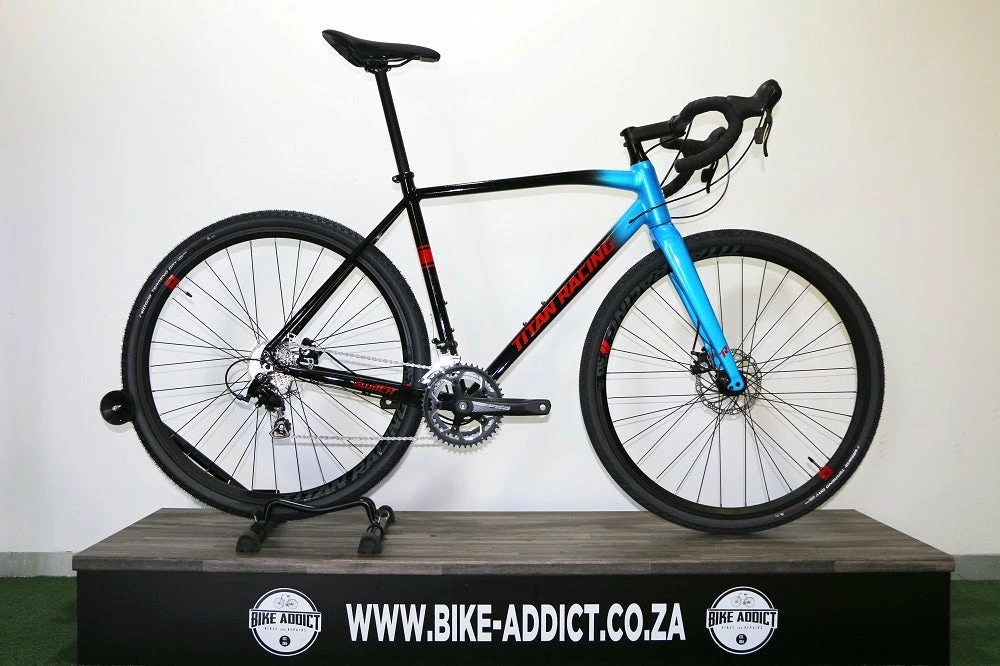

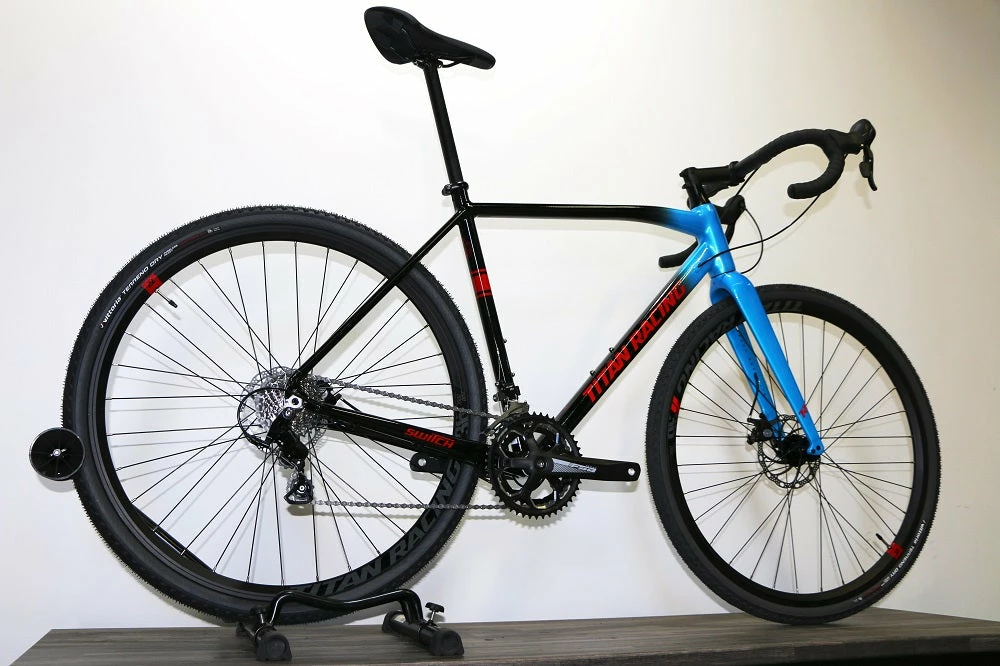

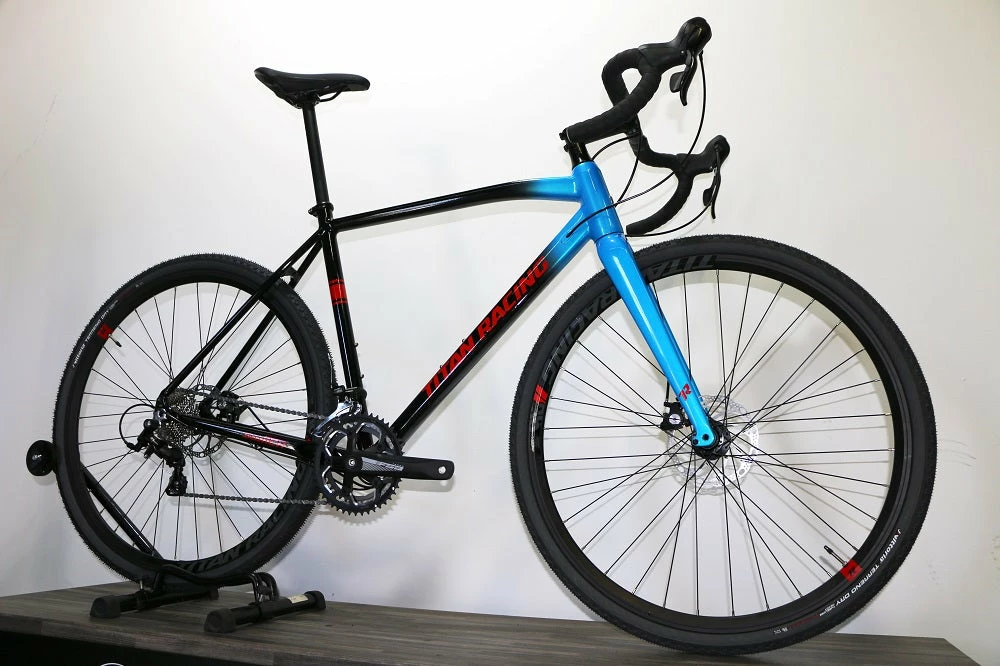

TITAN Switch Sport (2023)

FRAME

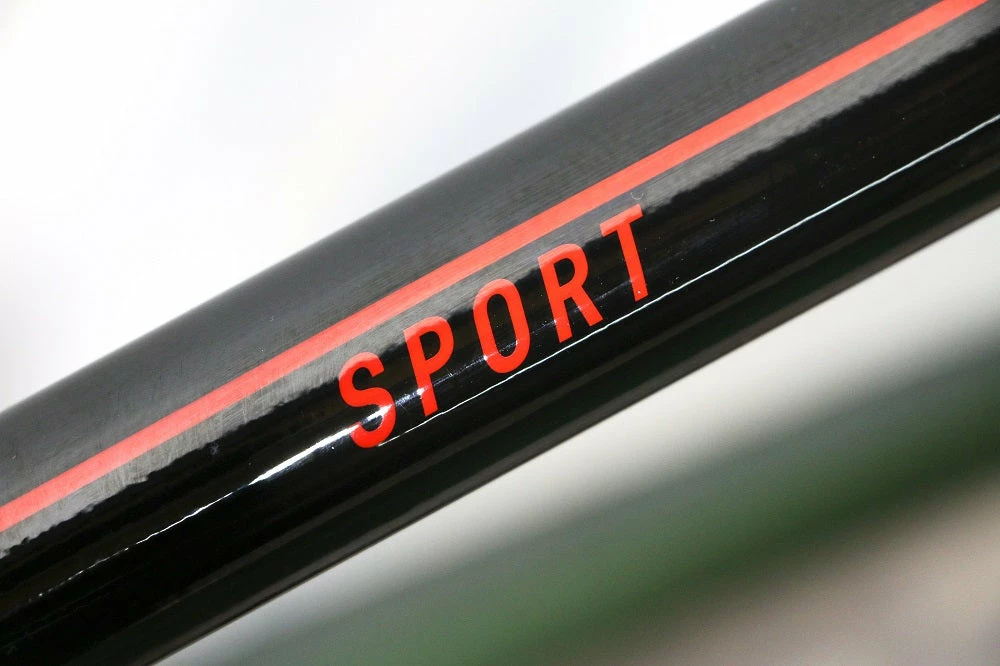

SWITCH ALLOY X6 GRAVEL FRAME
GRAVEL RACE GEOMETRY / HYDROFORMED TUBING / INTERNAL CABLE ROUTING / 12mm THRU AXLE REAR / DISC ONLY

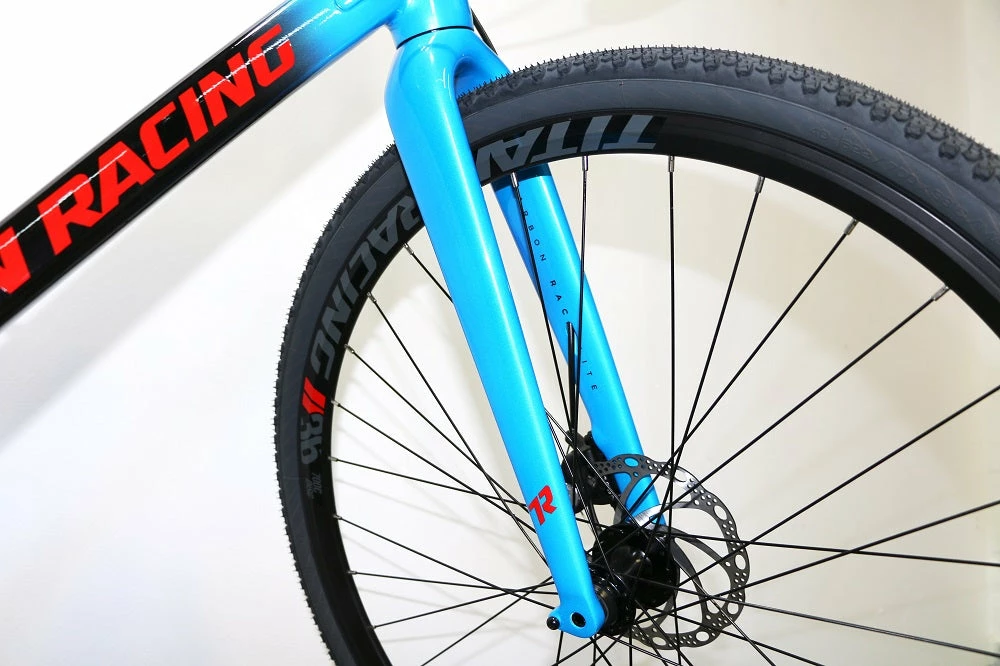

FORK
SWITCH CARBON 700C
HMF CARBON 12mm THRU AXLE

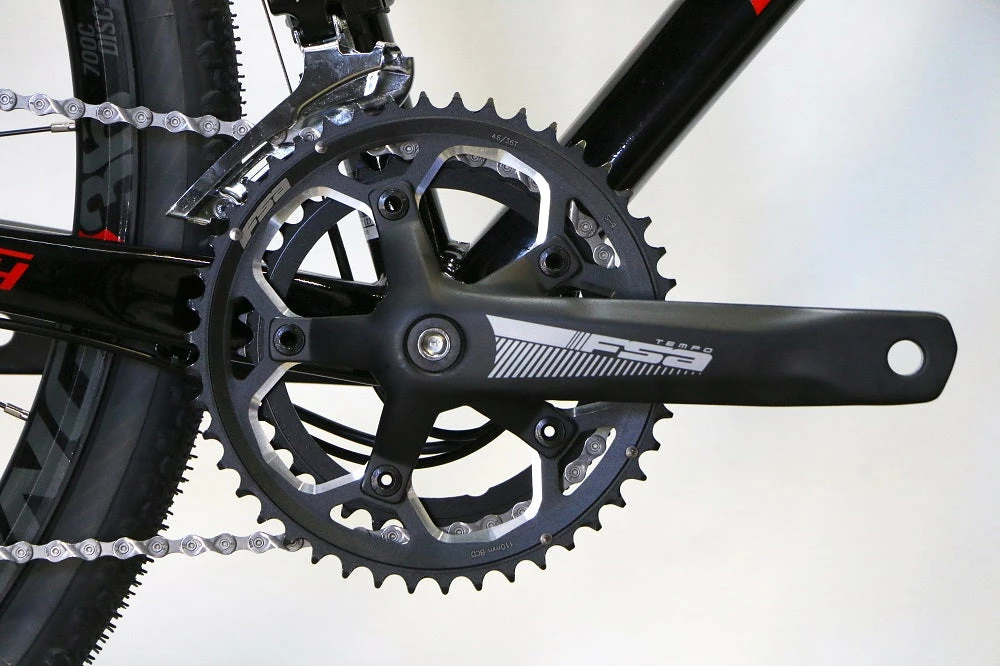

CHAINWHEEL
FSA TEMPO 46-36T
FSA / 46-36T / 9 SPEED / ALLOY CRANK / AL7075 STAMPED AND CNC CHAINRING / Q-FACTOR 152mm / 44mm CHAINLINE / S – 170mm CRANKARM / M+L+XL – 175mm CRANKARM

DERAILLEUR FRONT
MICROSHIFT R9 FD-R352-B/F

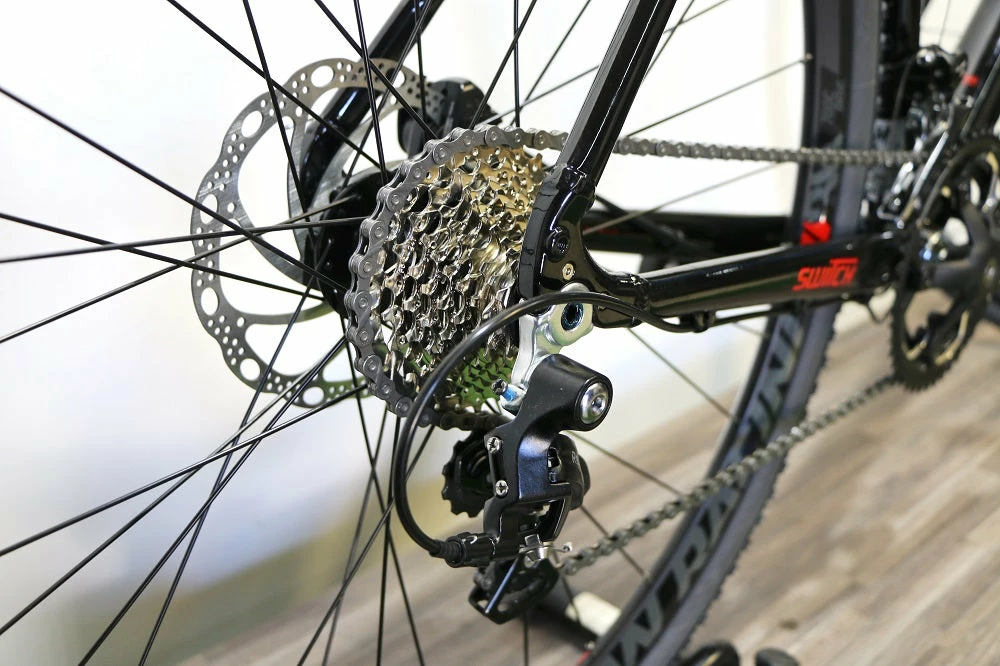

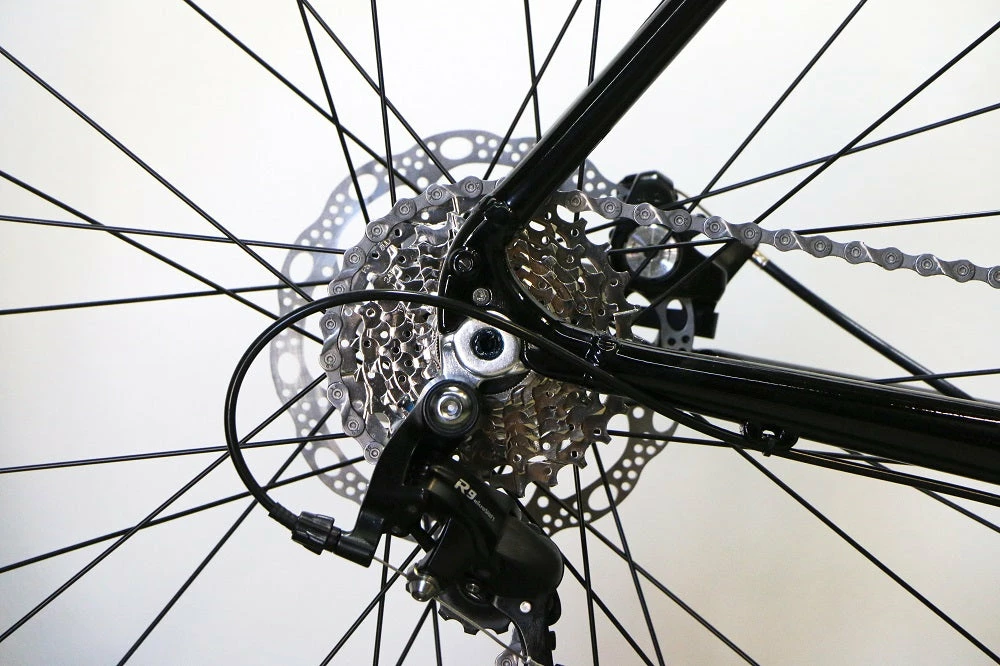

DERAILLEUR REAR
MICROSHIFT R9 RD-R42S

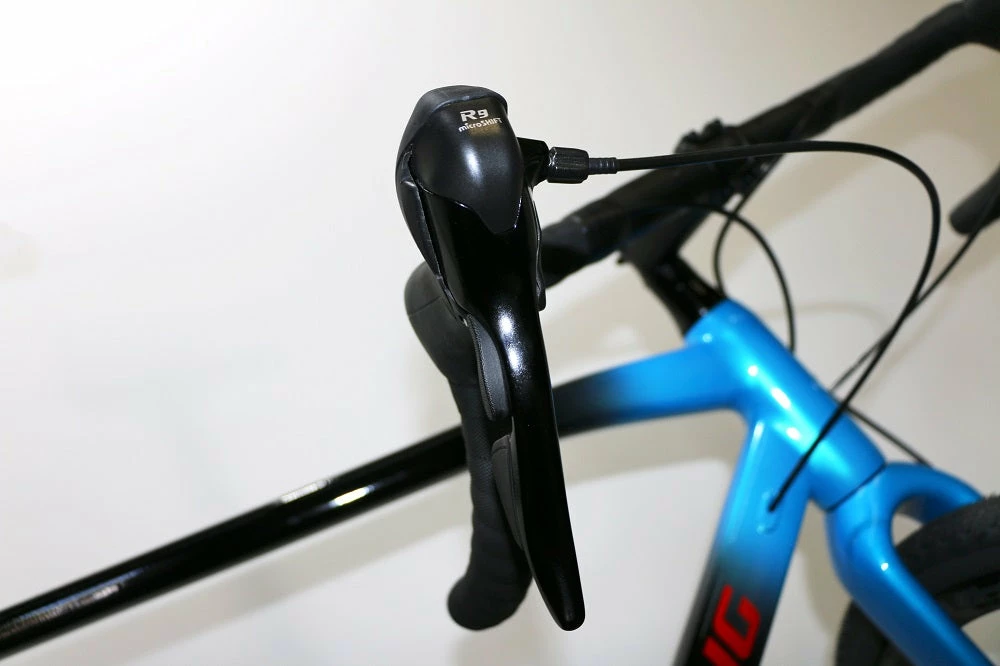

SHIFTER LEFT
MICROSHIFT R9 SB-R492

SHIFTER RIGHT
MICROSHIFT R9 SB-R492

CHAIN
KMC X9

FREEWHEEL
MICROSHIFT CS-H092 11-28T

BB SET
ATTACHED

SPEED
9 SPEED

BRAKE LEVER
ATTACHED

BRAKE FRONT
TEKTRO C510 Mechanical DISC 160MM

BRAKE REAR
TEKTRO C510 Mechanical DISC 160MM

BRAKE CABLE
BLACK

RIMS
TR COMP DISC 32 HOLE
DX-250, 700Cx14Gx32H, F/V, H25

HUB FRONT
TR COMP DISC
RX-512, THRU, 14Gx32H-M12x100MM

HUB REAR
TITAN COMP DISC
RX-142, 8/9/10/11s, THRU, 14Gx32H-M12x142MM

SPOKES
BLACK STAINLESS

TUBE
700C F/V

TYRES
VITTORIA TERRENO DRY 700 X 38C
GRAVEL 120TPI NYLON / 1C GRAPHENE 2.0 COMPOUND / TNT / ANTHRACITE SIDEWALL

GRIP
PLAIN BLACK – NO LOGO

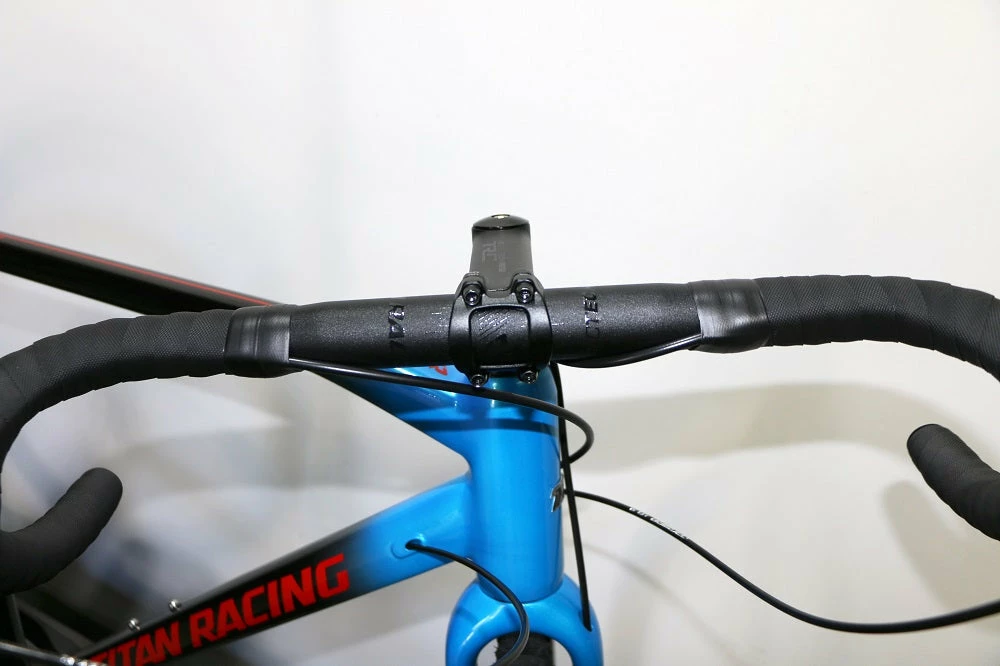

HANDLEBAR
TR GRAVEL PRO H/BAR
HB-3057DB-ICR (Sram) 44W*125H*10 degrees / 31.8MM / S = 420mm / M+L+XL = 440mm

HANDLEBAR STEM
TR PRO H/BAR STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / XS+S = 90mm / M+L+XL = 105mm

HEADSET
FSA

SPACER
2 X 10MM

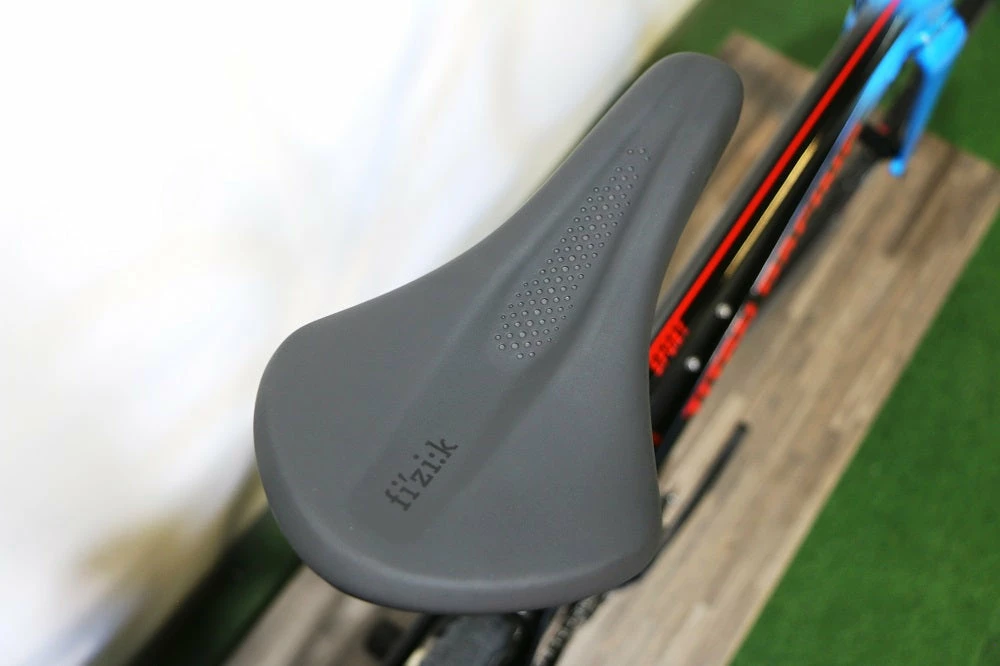

SADDLE
NEW FIZIK ALLIANTE GRAVEL

SEAT POST
TR COMP 27.2MM
TR SP-002 ALLOY RIGID 27.2mm 400mm

SEAT CLAMP
NEW ALLEN KEY TYPE
